MAX3420EETG+ - Analog Devices

Description: Maxim MAX3420EETG+, USB Controller, 12Mbit/s, USB 2.0, 3.3 V, 24-Pin TQFN

Download MAX3420EETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

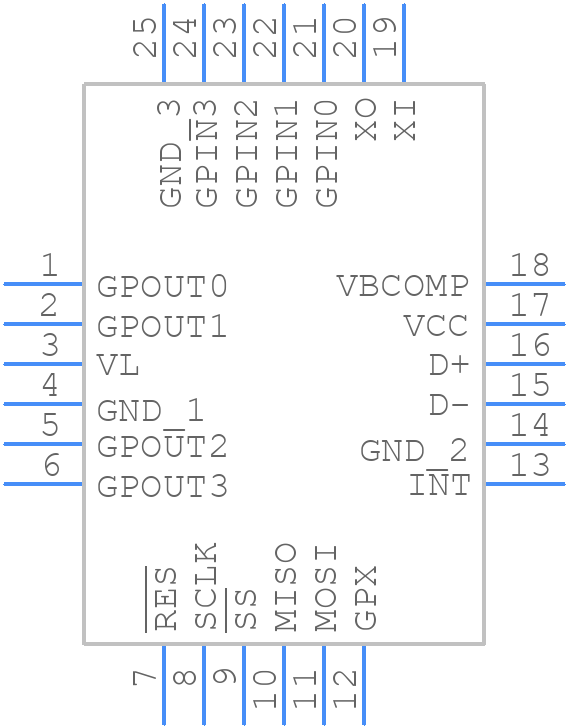

MAX3420EETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3420EETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin TQFN
click to zoom
3D Models
MAX3420EETG+ - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin TQFN
click to zoom

MAX3420EETG+ Details

  • Manufacturer Part Number:

    MAX3420EETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2005-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; USB; VBUS

  • Clock Frequency-Max:

    12.03 MHz

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

MAX3420EETG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX3420EETG+ can be found in the MAX3420E application note (AN4341) provided by Analog Devices. It provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize EMI.
  • The MAX3420EETG+ can be configured for different USB modes using the MODE pin and the USB_ID pin. The MODE pin selects between host and device modes, while the USB_ID pin determines the device's role as a host or device. Refer to the datasheet and application notes for specific configuration details.
  • The MAX3420EETG+ requires a specific power sequencing to ensure proper operation. The VCCIO pin should be powered up first, followed by the VCC pin. The VCCIO pin should be powered down last to prevent damage to the device. Refer to the datasheet for specific power sequencing requirements.
  • The MAX3420EETG+ has built-in support for suspend and resume operations. The device can be put into a low-power suspend mode by asserting the SUSPEND pin. To resume operation, the SUSPEND pin should be de-asserted, and the device will return to its previous state. Refer to the datasheet for specific details on suspend and resume operations.
  • The MAX3420EETG+ has built-in ESD protection, but additional protection measures may be necessary to ensure device reliability. It is recommended to use ESD protection devices, such as TVS diodes, on the USB data lines and power lines to protect against electrostatic discharge.
