MAX34417ENE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX34417ENE+ - Current & Voltage Monitor, 2.7V to 3.6V, WLP-16

Download MAX34417ENE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

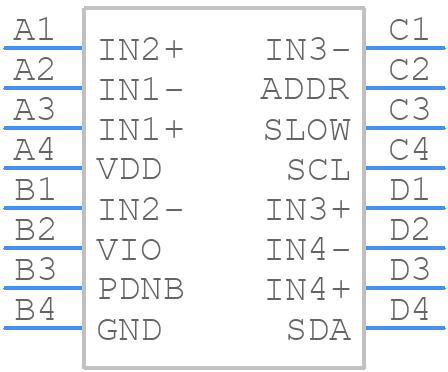

MAX34417ENE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX34417ENE+ - Analog Devices PCB footprint - BGA - BGA - N162A2+1
click to zoom
3D Models
MAX34417ENE+ - Analog Devices - 3D model - BGA - N162A2+1
click to zoom

MAX34417ENE+ Details

  • Manufacturer Part Number:

    MAX34417ENE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-03-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PBGA-B16

  • Length:

    2.007 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.007 mm

MAX34417ENE+ Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the MAX34417ENE+ evaluation kit documentation, which includes a detailed layout guide and Gerber files. It's essential to follow this layout to ensure optimal performance and minimize noise.
  • Analog Devices offers a variety of tools and resources to help configure the MAX34417ENE+ for specific applications. These include the MAX34417ENE+ evaluation kit, which provides a hardware platform for testing and evaluation, as well as software tools like the MAX34417ENE+ GUI, which allows users to adjust settings and monitor performance.
  • The MAX34417ENE+ has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • The MAX34417ENE+ is designed to operate in a variety of environments, including those with high vibration. However, the user should ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • Analog Devices provides a variety of resources to help troubleshoot issues with the MAX34417ENE+, including the device datasheet, application notes, and FAQs section on the company's website. Additionally, users can contact Analog Devices' support team for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX34417ENE+ Overview

Use the download button to access the MAX34417ENE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX34, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
