MAX34460AA00+ - Analog Devices

Description: PMBus 12-Channel Voltage Monitor and Sequencer

Download MAX34460AA00+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

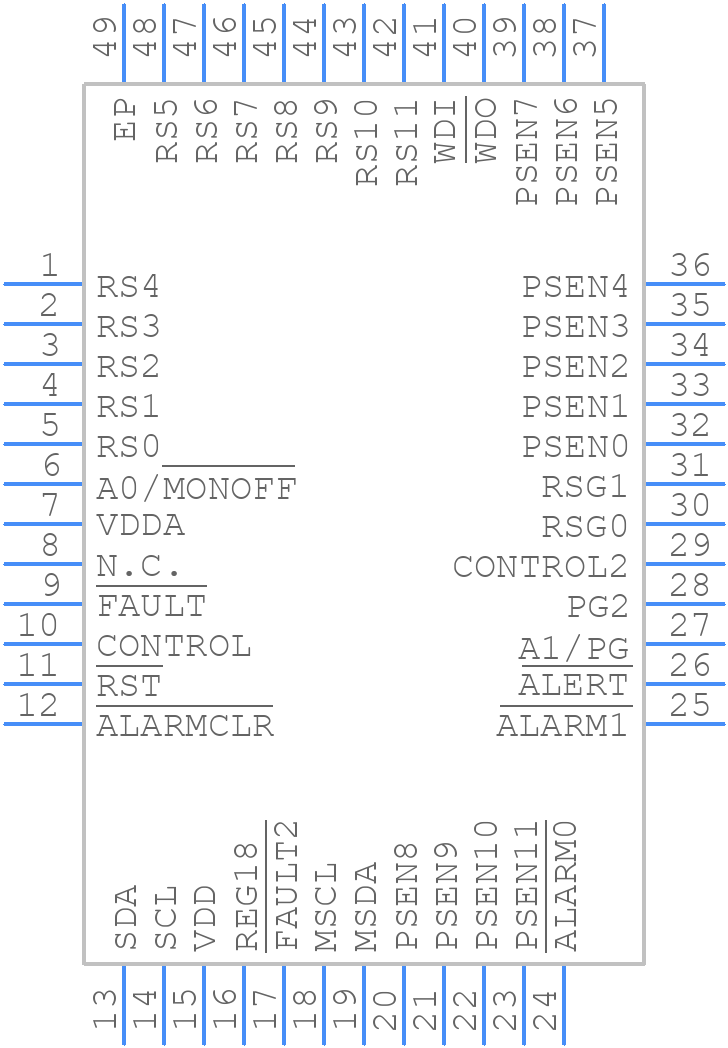

MAX34460AA00+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX34460AA00+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-LFCSP-6X6X0.75
click to zoom
3D Models
MAX34460AA00+ - Analog Devices - 3D model - Quad Flat No-Lead - 48-LFCSP-6X6X0.75
click to zoom

MAX34460AA00+ Details

  • Manufacturer Part Number:

    MAX34460AA00+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-EP-48

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.048V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX34460AA00+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX34460AA00+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke to reduce EMI. Refer to the application note AN-1991 for more details.
  • Choose X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. For the output capacitor, select a capacitor with a low ESR (Equivalent Series Resistance) and a capacitance value between 1uF to 10uF. Refer to the datasheet for more information.
  • The MAX34460AA00+ can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
  • You can implement OVP using an external voltage supervisor or a dedicated OVP IC. Connect the OVP circuitry to the EN pin of the MAX34460AA00+ to shut down the device in case of an overvoltage event.
  • The MAX34460AA00+ has a thermal derating of 1.67mW/°C above 25°C. Ensure proper thermal management, such as using a heat sink or a thermally conductive PCB, to maintain a safe operating temperature.
