MAX3491ESD+ - Analog Devices

Description: MAX3491ESD+, Line Transceiver, RS-485, RS-422 10Mbit/s Differential, 3.3 V, 14-Pin SOIC

Download MAX3491ESD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

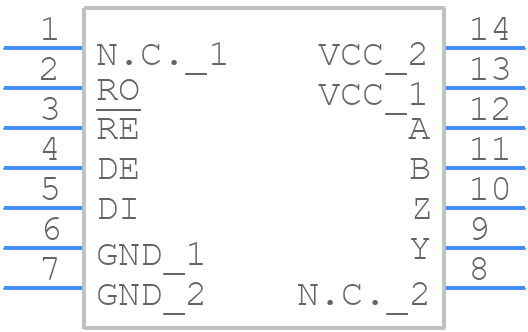

MAX3491ESD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3491ESD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S14+4_2021
click to zoom
3D Models
MAX3491ESD+ - Analog Devices - 3D model - Small Outline Packages - S14+4_2021
click to zoom

MAX3491ESD+ Details

  • Manufacturer Part Number:

    MAX3491ESD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1994-12-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0025 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    90 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    35 ns

  • Width:

    3.9 mm

MAX3491ESD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3491ESD+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up of the MAX3491ESD+, it's essential to follow a controlled power-up sequence. The device requires a single 3.3V or 5V power supply, and the voltage should be applied to the VCC pin before the digital inputs. The power supply should be clean and well-regulated, with minimal noise and ripple. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
  • The MAX3491ESD+ is a high-speed transceiver that can support data rates up to 3.2 Gbps. However, the actual data rate achieved depends on the specific application, PCB layout, and signal quality. In general, the device can support data rates up to 1.5 Gbps over short distances (less than 10 inches) and up to 1 Gbps over longer distances (up to 20 inches).
  • To troubleshoot issues with the MAX3491ESD+, start by verifying the power supply and ensuring that the device is properly powered. Check the signal integrity and quality, and verify that the clock and data signals are within the specified limits. Use an oscilloscope to analyze the signal waveforms and identify any anomalies. Additionally, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • The MAX3491ESD+ is a 3.3V or 5V device that is compatible with other logic families, including LVTTL, LVCMOS, and SSTL. However, the device's output levels may need to be adjusted to match the input requirements of the receiving device. Additionally, the device's input levels may need to be adjusted to match the output levels of the driving device.
