MAX35104ETL+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX35104ETL+ - GAS FLOW METER SOC, 2.3V-3.6V, TQFN-40

Download MAX35104ETL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

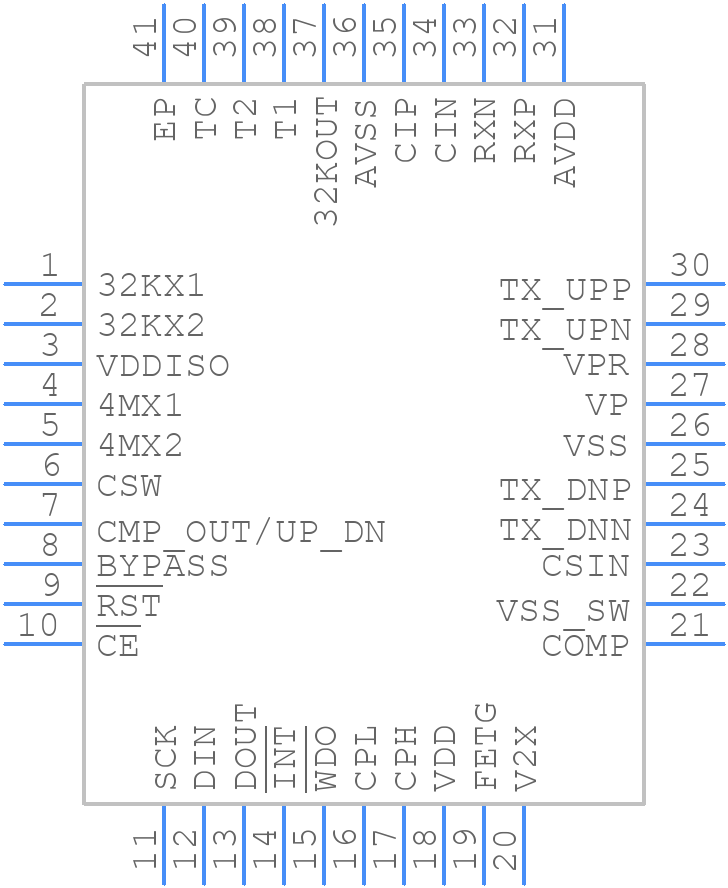

Symbol
MAX35104ETL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX35104ETL+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN-40
click to zoom
3D Models
MAX35104ETL+ - Analog Devices - 3D model - Quad Flat No-Lead - TQFN-40
click to zoom

MAX35104ETL+ Details

  • Manufacturer Part Number:

    MAX35104ETL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-5X5X0.75

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2017-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SoC

MAX35104ETL+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX35104ETL+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common mode choke to filter out noise. Refer to the application note AN-2153 for more details.
  • The input capacitor value depends on the input voltage, frequency, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating at least 2x the input voltage. Consult the datasheet and application notes for specific guidance.
  • The MAX35104ETL+ can deliver up to 1A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. Ensure proper thermal management and follow the guidelines in the datasheet to avoid overheating.
  • The MAX35104ETL+ has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. This allows the device to detect and respond to overvoltage conditions. Consult the datasheet and application notes for specific implementation details.
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is pulled high, the device is enabled, and when pulled low, it is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in your design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX35104ETL+ Overview

Use the download button to access the MAX35104ETL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX35, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
