MAX3535ECWI+ - Analog Devices

Description: Maxim MAX3535ECWI+, Line Transceiver, RS-422, RS-485, 3 → 5.5 V, 28-Pin SOIC

Download MAX3535ECWI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

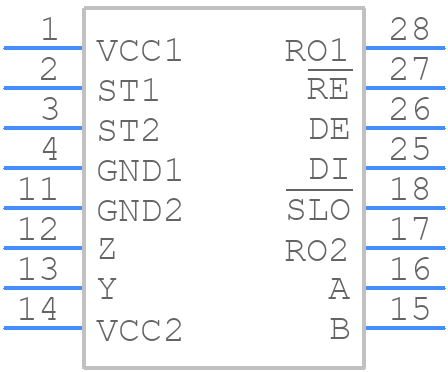

Symbol
MAX3535ECWI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3535ECWI+ - Analog Devices PCB footprint - Other - Other - 28 Wide SO(21.0145)
click to zoom
3D Models
MAX3535ECWI+ - Analog Devices - 3D model - Other - 28 Wide SO(21.0145)
click to zoom

MAX3535ECWI+ Details

  • Manufacturer Part Number:

    MAX3535ECWI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SOIC_W-300_MIL

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    855 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1560 ns

  • Width:

    7.5 mm

MAX3535ECWI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3535ECWI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up of the MAX3535ECWI+, it's essential to follow a controlled power-up sequence. The device requires a single 2.7V to 3.6V power supply, and the voltage should be ramped up slowly (typically 1ms to 10ms) to prevent latch-up. Additionally, decoupling capacitors should be placed close to the device, and the power supply should be clean and well-regulated.
  • The MAX3535ECWI+ is a high-speed transceiver capable of operating at data rates up to 3.2Gbps. However, the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. In general, data rates up to 2.5Gbps are easily achievable with proper design and layout.
  • Troubleshooting issues with the MAX3535ECWI+ typically involves checking the power supply, clock signals, and data signals. Use an oscilloscope to verify the signal integrity, and check for any signs of signal distortion, ringing, or jitter. Additionally, review the PCB layout and ensure that it meets the recommended guidelines. If issues persist, consult the datasheet, application notes, and Analog Devices' support resources.
  • The MAX3535ECWI+ is a high-speed transceiver that is compatible with other devices that operate at similar data rates and voltage levels. However, compatibility depends on the specific application and device requirements. It's essential to review the datasheet and application notes for the specific devices involved to ensure compatibility and proper operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3535ECWI+ Overview

Use the download button to access the MAX3535ECWI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX35, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
