Part Image

MAX3814CHJ+T - Analog Devices

Description: Equalizers DVI/HDMI TMDS Fr-4 And Cable Equalizer/Driver

Download MAX3814CHJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

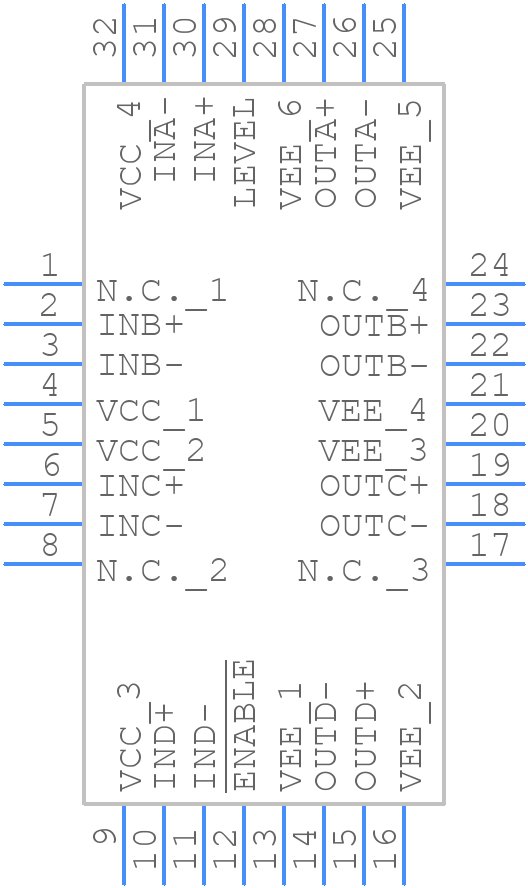

Symbol
MAX3814CHJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3814CHJ+T - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - H32+1
click to zoom
3D Models
MAX3814CHJ+T - Analog Devices - 3D model - Quad Flat Packages - H32+1
click to zoom

MAX3814CHJ+T Details

  • Manufacturer Part Number:

    MAX3814CHJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    32-TQFP-5X5X1.0

  • Package Description:

    5 X 5 MM, 1 MM HEIGHT, ROHS COMPLIANT, MS-026, TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-TQFP-5X5X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX3814CHJ+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX3814CHJ+T. Ensure that the input and output traces are separated, and the power supply lines are decoupled with capacitors. Use a solid ground plane and keep the layout symmetrical to minimize noise and radiation.
  • The choice of external components, such as resistors and capacitors, depends on the specific application and operating conditions. Refer to the datasheet for recommended values and consider factors like tolerance, temperature coefficient, and parasitic effects.
  • The MAX3814CHJ+T is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure that your design takes into account the operating temperature range and provides adequate thermal management.
  • The MAX3814CHJ+T has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use ESD-safe equipment, handle the device by the body or pins, and avoid touching the pins or die.
  • Common failure modes for the MAX3814CHJ+T include overheating, overvoltage, and electrical overstress. Mitigate these risks by ensuring proper thermal management, using voltage regulators and protection circuits, and following recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3814CHJ+T Overview

Use the download button to access the MAX3814CHJ+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX38, or try a keyword search, such as Other Consumer ICs
