MAX3815ACCM+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX3815ACCM+ - Digital Video Equalizer, 3V to 3.5V, TQFP-48

Download MAX3815ACCM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

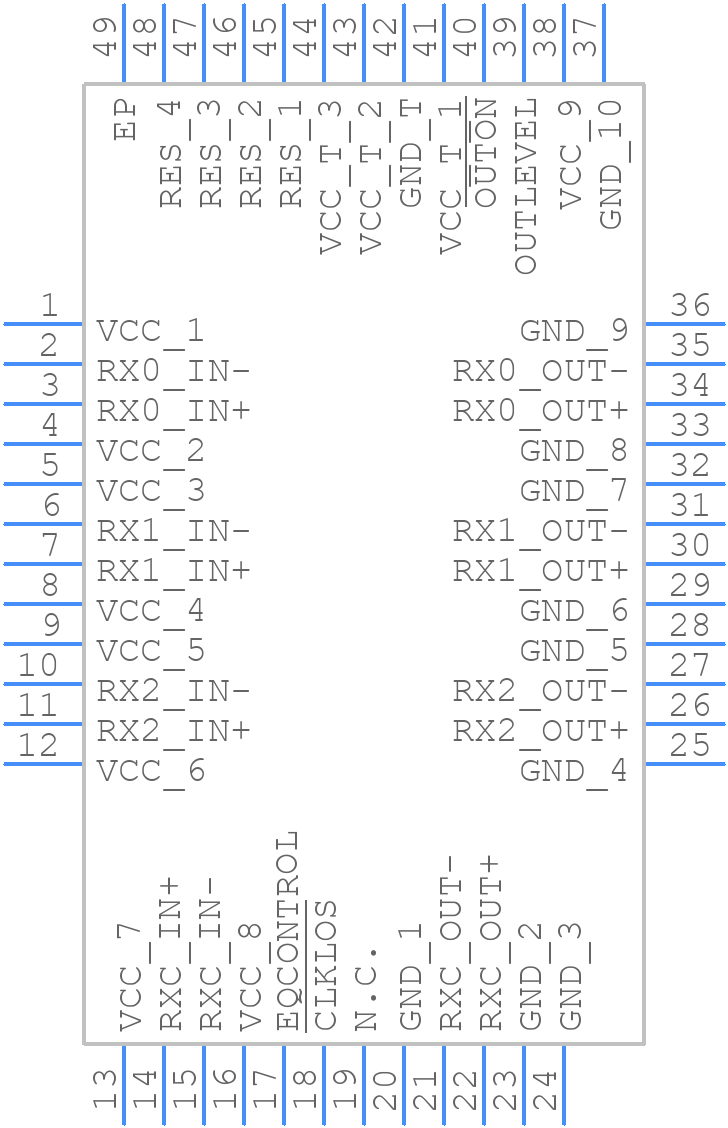

MAX3815ACCM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX3815ACCM+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - C48E+8
click to zoom
3D Models
MAX3815ACCM+ - Analog Devices - 3D model - Quad Flat Packages - C48E+8
click to zoom

MAX3815ACCM+ Details

  • Manufacturer Part Number:

    MAX3815ACCM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    48-TQFP_EP-7X7X1.0

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-TQFP_EP-7X7X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-08-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX3815ACCM+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX3815ACCM+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX3815ACCM+ is properly powered, make sure to provide a clean and stable power supply voltage within the recommended range of 2.7V to 5.5V. Also, ensure that the power supply can provide enough current to support the device's operating current, which is typically around 1.5mA.
  • The MAX3815ACCM+ can support data rates up to 100Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe.
  • The MAX3815ACCM+ can be configured for different applications by adjusting the values of the external resistors and capacitors. For example, the device can be configured for different output voltage levels, output current limits, and fault detection thresholds by selecting the appropriate values for the external components.
  • Yes, the MAX3815ACCM+ is pin-compatible with other devices in the MAX3815 family, making it easy to migrate between different devices or upgrade to a different device with similar functionality.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX3815ACCM+ Overview

Use the download button to access the MAX3815ACCM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX38, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
