MAX391EUE+ - Analog Devices

Description: Maxim MAX391EUE+, Analogue Switch Quad SPST, 3 → 15 V, 16-Pin TSSOP

Download MAX391EUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

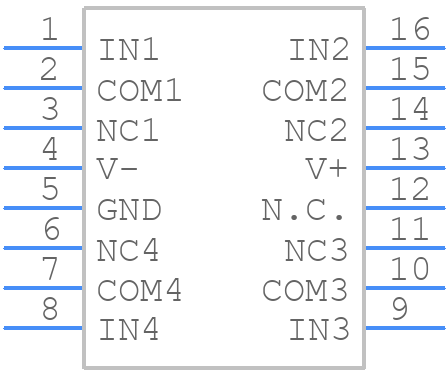

MAX391EUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX391EUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 TSSOP
click to zoom
3D Models
MAX391EUE+ - Analog Devices - 3D model - Small Outline Packages - 16 TSSOP
click to zoom

MAX391EUE+ Details

  • Manufacturer Part Number:

    MAX391EUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-05-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    72 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    75 ns

  • Switch-on Time-Max:

    130 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX391EUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX391EUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, place the input filter components close to the IC and use a Kelvin connection for the sense lines.
  • To ensure accurate current sensing, use a low-impedance sense resistor (e.g., 1 mΩ) and place it close to the IC. Also, ensure that the sense lines are twisted and shielded to minimize noise pickup. Additionally, use a high-quality, low-temperature-coefficient sense resistor to minimize errors due to temperature changes.
  • The maximum allowable voltage on the VCC pin of the MAX391EUE+ is 5.5V. Exceeding this voltage can cause permanent damage to the IC. It's recommended to use a voltage regulator or a voltage clamp to ensure that the VCC pin voltage remains within the specified range.
  • The MAX391EUE+ has a built-in overcurrent detection feature that can be used to detect overcurrent conditions. When an overcurrent condition is detected, the IC can be configured to latch off the output or generate an interrupt signal. It's recommended to use an external overcurrent protection circuit, such as a fuse or a current-limiting resistor, to protect the system from damage.
  • The recommended input filter configuration for the MAX391EUE+ involves using a 2nd-order low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz. This helps to filter out high-frequency noise and ensure accurate current sensing. The filter components should be chosen based on the specific application requirements and noise environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX391EUE+ Overview

Use the download button to access the MAX391EUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX39, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
