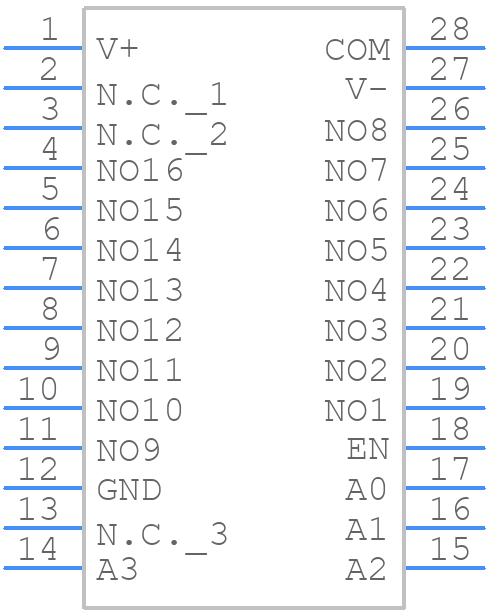

Symbol
MAX396CAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX396CAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SSOP
click to zoom
3D Models
MAX396CAI+ - Analog Devices - 3D model - Small Outline Packages - 28 SSOP
click to zoom

MAX396CAI+ Details

  • Manufacturer Part Number:

    MAX396CAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    1.8 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    200 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX396CAI+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX396CAI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a star connection for the power supply and to keep the sensitive analog signals away from the digital signals.
  • The MAX396CAI+ requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, VREF, and then the analog inputs. It's also important to ensure that the power supply is stable and free of noise before applying the analog inputs.
  • The maximum allowable input voltage for the MAX396CAI+ is 5.5V, and the device is designed to handle overvoltage conditions up to 6V. However, it's recommended to use input voltage limiting resistors to prevent damage to the device in case of overvoltage conditions. The device also has built-in overvoltage protection, which will limit the output current in case of an overvoltage condition.
  • To optimize the performance of the MAX396CAI+, it's recommended to use a low-noise power supply, minimize the length of the traces between the device and the capacitors, and use a good quality capacitor with low equivalent series resistance (ESR). Additionally, it's recommended to use a shielded enclosure to reduce electromagnetic interference (EMI) and to keep the device away from high-frequency noise sources.
  • The MAX396CAI+ has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance. A good thermal management strategy involves using a heat sink, ensuring good airflow around the device, and minimizing the power dissipation in the device. High temperatures can affect the device's accuracy, noise performance, and reliability.
