MAX40024ANL+ - Analog Devices

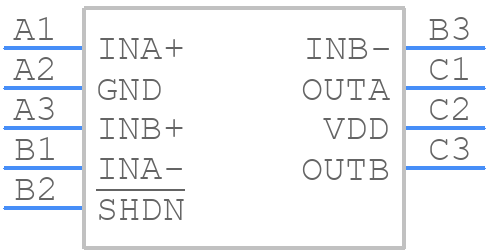

MAX40024ANL+ Details

• Manufacturer Part Number:

  MAX40024ANL+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  9-WLCSP-N/A

• Package Description:

  WLP-9

• Pin Count:

  9

• Manufacturer Package Code:

  9-WLCSP-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2021-08-19

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.00055 µA

• Common-mode Reject Ratio-Min:

  75 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  400 µV

• JESD-30 Code:

  S-PBGA-B9

• Length:

  1.228 mm

• Low-Bias:

  YES

• Low-Offset:

  YES

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  9

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA9,3X3,16

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.5 mm

• Slew Rate-Nom:

  0.02 V/us

• Supply Current-Max:

  0.05 mA

• Supply Voltage Limit-Max:

  4 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  80

• Voltage Gain-Min:

  31622

• Wideband:

  NO

• Width:

  1.228 mm
