MAX40026ATA+T - Analog Devices

Description: Analog Comparators High Speed 1ns Comparator

Download MAX40026ATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

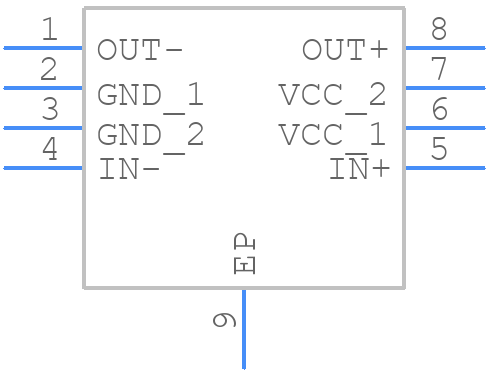

MAX40026ATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40026ATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+3
click to zoom
3D Models
MAX40026ATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+3
click to zoom

MAX40026ATA+T Details

  • Manufacturer Part Number:

    MAX40026ATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    0.28 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX40026ATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40026ATA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor value for the MAX40026ATA+T depends on the input voltage ripple, output voltage, and desired output noise. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. It's also important to consider the capacitor's ESR and ESL to ensure it can handle the high-frequency switching of the device.
  • The MAX40026ATA+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
  • Yes, the MAX40026ATA+T is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the MAX40026ATA+T, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the input and output capacitors are correctly sized. Use an oscilloscope to check for oscillations or ringing on the output voltage. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support team for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX40026ATA+T Overview

Use the download button to access the MAX40026ATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
