MAX40026ATA/VY+T - Analog Devices

Description: Analog Comparators High Speed 1ns Comparator

Download MAX40026ATA/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

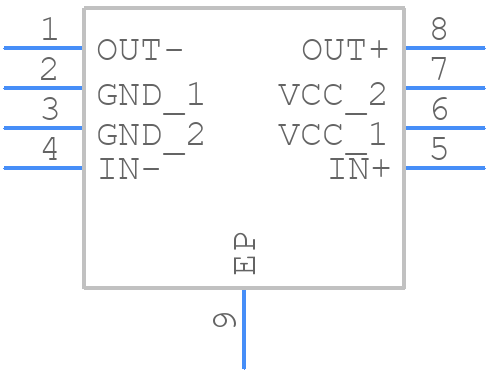

MAX40026ATA/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40026ATA/VY+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822Y+3C
click to zoom
3D Models
MAX40026ATA/VY+T - Analog Devices - 3D model - Small Outline No-lead - T822Y+3C
click to zoom

MAX40026ATA/VY+T Details

  • Manufacturer Part Number:

    MAX40026ATA/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP_SS-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP_SS-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    0.28 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX40026ATA/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40026 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the input signal source and to use a low-ESR capacitor for the VCC bypass.
  • To ensure accurate voltage measurement, it's essential to use a high-impedance input source, minimize the input capacitance, and avoid loading the input signal. Additionally, the MAX40026 has a high input impedance, so it's recommended to use a buffer amplifier if the input source has a low impedance.
  • The MAX40026 can handle input voltages up to 76V, but it's recommended to limit the input voltage to 60V to ensure accurate measurement and to prevent damage to the device.
  • The MAX40026 does not require calibration for accurate voltage measurement. However, it's recommended to perform a system-level calibration to account for any errors introduced by the PCB layout, input source, and other system components.
  • The typical response time of the MAX40026 is 1.5ms, but it can vary depending on the input signal frequency and amplitude. The device has a bandwidth of 3kHz, so it's suitable for measuring DC and low-frequency AC voltages.
