MAX40027ATC/VY+T - Analog Devices

Description: Dual 280ps High-Speed Comparator, Ultra-Low Dispersion with LVDS Outputs

Download MAX40027ATC/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

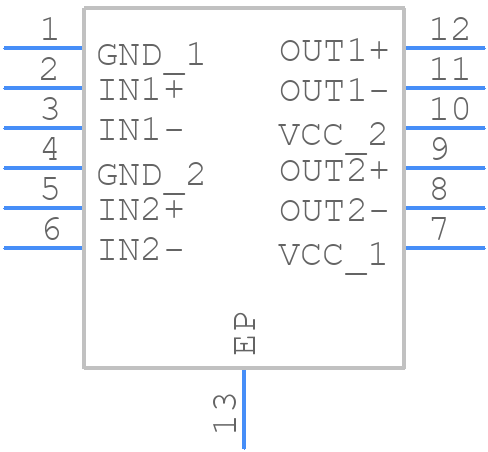

Symbol
MAX40027ATC/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40027ATC/VY+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1232MY+1
click to zoom
3D Models
MAX40027ATC/VY+T - Analog Devices - 3D model - Small Outline No-lead - TD1232MY+1
click to zoom

MAX40027ATC/VY+T Details

  • Manufacturer Part Number:

    MAX40027ATC/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP_SS-3X3X0.75

  • Package Description:

    SWTDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP_SS-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-04-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    0.28 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX40027ATC/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40027ATC/VY+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor value for the MAX40027ATC/VY+T depends on the input voltage, output voltage, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating that is at least 1.5 times the input voltage. It's also important to consider the capacitor's ESR and ESL to ensure that it can handle the high-frequency switching of the device.
  • The MAX40027ATC/VY+T can operate in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the MAX40027ATC/VY+T is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. Additionally, it's AEC-Q100 qualified, which means it meets the stringent requirements of the automotive industry.
  • To troubleshoot issues with the MAX40027ATC/VY+T, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive heat generation or thermal shutdown. Use an oscilloscope to check for any voltage or current oscillations. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
