MAX40056FAWA+T - Analog Devices

Description: Bidirectional Current Sense Amplifier with PWM-Rejection

Download MAX40056FAWA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

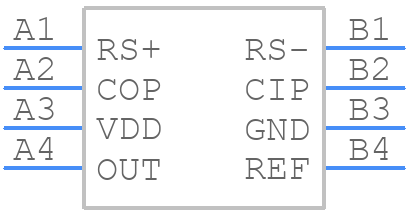

Symbol
MAX40056FAWA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40056FAWA+T - Analog Devices PCB footprint - BGA - BGA - W81B2+1
click to zoom
3D Models
MAX40056FAWA+T - Analog Devices - 3D model - BGA - W81B2+1
click to zoom

MAX40056FAWA+T Details

  • Manufacturer Part Number:

    MAX40056FAWA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-WLCSP-N/A

  • Package Description:

    WLP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    30 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    300 µV

  • JESD-30 Code:

    R-PBGA-B8

  • Length:

    2.018 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,2X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.69 mm

  • Slew Rate-Nom:

    1.5 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    1.398 mm

MAX40056FAWA+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX56FAWA+T. Ensure a solid ground plane, keep analog and digital traces separate, and use a star topology for power supply connections. Also, place decoupling capacitors close to the device and use a common mode choke for noise filtering.
  • The input filter components (RIN and CIN) should be chosen to filter out high-frequency noise while allowing the desired frequency band to pass through. A good starting point is to use a 1kΩ resistor and a 10nF capacitor. Adjust these values based on your specific application's requirements and noise environment.
  • The maximum power dissipation of the MAX56FAWA+T is 700mW. Ensure the device stays within the safe operating range by providing a proper heat sink, using a thermally efficient PCB design, and keeping the ambient temperature below 85°C.
  • The MAX56FAWA+T is rated for operation up to 125°C. However, the device's performance and accuracy may degrade at high temperatures. If your application requires high-temperature operation, consider using a thermally efficient design, and consult with Analog Devices Inc. for guidance on using the device in extreme temperatures.
  • To troubleshoot issues with the MAX56FAWA+T, start by verifying the input voltage, output voltage, and feedback connections. Check for proper PCB layout, decoupling capacitors, and input filter components. Use an oscilloscope to inspect the output voltage and input voltage waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
