MAX40056UAWA+T - Analog Devices

Description: Bidirectional Current Sense Amplifier with PWM-Rejection

Download MAX40056UAWA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

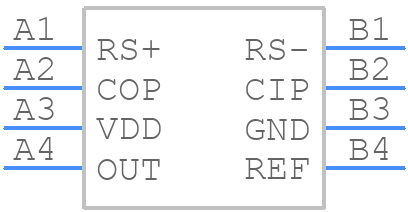

Symbol
MAX40056UAWA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40056UAWA+T - Analog Devices PCB footprint - BGA - BGA - W81B2+1
click to zoom
3D Models
MAX40056UAWA+T - Analog Devices - 3D model - BGA - W81B2+1
click to zoom

MAX40056UAWA+T Details

  • Manufacturer Part Number:

    MAX40056UAWA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-WLCSP-N/A

  • Package Description:

    WLP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-01-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    30 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    300 µV

  • JESD-30 Code:

    R-PBGA-B8

  • Length:

    2.018 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,2X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.69 mm

  • Slew Rate-Nom:

    1.5 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    1.398 mm

MAX40056UAWA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40056UAWA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure accuracy, it's essential to follow proper layout and routing guidelines, use a high-accuracy shunt resistor, and calibrate the device according to the datasheet. Additionally, consider using a Kelvin connection to the shunt resistor to minimize errors due to PCB trace resistance.
  • The MAX40056UAWA+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and accuracy.
  • The MAX40056UAWA+T is designed for low-frequency current measurements up to 1 kHz. For high-frequency current measurements, consider using a different device or adding an external filter to the output of the MAX40056UAWA+T to remove high-frequency noise.
  • The MAX40056UAWA+T has an overcurrent detection feature that can be used to detect overcurrent conditions. When an overcurrent condition is detected, the device can be configured to output an alert signal or shut down the power supply to prevent damage. It's essential to implement proper overcurrent protection to prevent damage to the device and the system.
