MAX40080ANC+T - Analog Devices

Description: Precision, Fast Sample-Rate, Digital Current-Sense Amplifier 50 kHz, WLP-12 , -40°C ~ +125°C

Download MAX40080ANC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

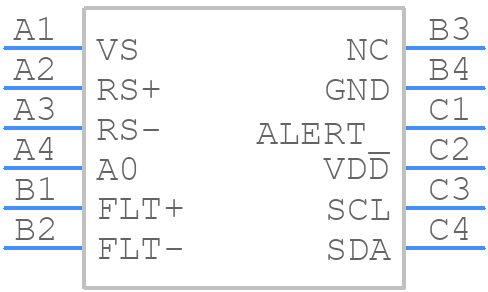

MAX40080ANC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40080ANC+T - Analog Devices PCB footprint - BGA - BGA - N121D1+1S
click to zoom
3D Models
MAX40080ANC+T - Analog Devices - 3D model - BGA - N121D1+1S
click to zoom

MAX40080ANC+T Details

  • Manufacturer Part Number:

    MAX40080ANC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2021-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.02 µA

  • Common-mode Reject Ratio-Min:

    119 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    55 µV

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.698 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage Limit-Max:

    2 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    1.268 mm

MAX40080ANC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40080ANC+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. It's also recommended to place the device close to the power source and use a low-ESR capacitor for decoupling.
  • To configure the MAX40080ANC+T for a specific current sensing application, you need to select the appropriate gain setting, bandwidth, and output voltage range. You can use the device's internal gain settings or external resistors to set the gain. The bandwidth can be set using the device's internal filters or external capacitors. The output voltage range can be set using the device's internal voltage reference or an external voltage reference.
  • The MAX40080ANC+T has an operating temperature range of -40°C to +125°C, but the maximum allowable temperature range depends on the specific application and the device's power dissipation. It's recommended to keep the device's junction temperature below 150°C to ensure reliable operation.
  • Calibrating the MAX40080ANC+T involves adjusting the device's offset and gain to match the specific current sensing application. You can use the device's internal calibration registers or external calibration resistors to set the offset and gain. It's recommended to perform calibration at multiple temperatures and current levels to ensure accurate measurements across the entire operating range.
  • The recommended power-up sequence for the MAX40080ANC+T involves applying the power supply voltage (VCC) first, followed by the analog input voltage (VIN). This ensures that the device's internal voltage regulators and analog circuits are properly initialized before the device starts operating.
