MAX40108ANT+T - Analog Devices

Description: 1V, Low-Power, Precision Operational Amplifier

Download MAX40108ANT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

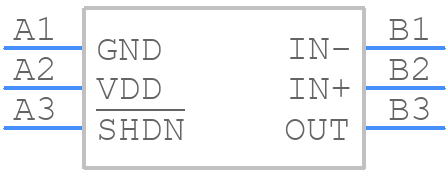

Symbol
MAX40108ANT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40108ANT+T - Analog Devices PCB footprint - BGA - BGA - MAX40108ANT+T
click to zoom
3D Models
MAX40108ANT+T - Analog Devices - 3D model - BGA - MAX40108ANT+T
click to zoom

MAX40108ANT+T Details

  • Manufacturer Part Number:

    MAX40108ANT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-08-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    107 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PBGA-B6

  • Length:

    1.218 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.5 mm

  • Slew Rate-Nom:

    0.08 V/us

  • Supply Current-Max:

    0.042 mA

  • Supply Voltage Limit-Max:

    4 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    168

  • Voltage Gain-Min:

    199526

  • Wideband:

    NO

  • Width:

    0.918 mm

MAX40108ANT+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40108ANT+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The maximum input voltage that can be applied to the MAX40108ANT+T is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX40108ANT+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
  • To troubleshoot issues with the MAX40108ANT+T, start by checking the input voltage and current, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check the output voltage and current waveforms, and verify that the device is not overheating. Also, check the PCB layout and component values to ensure they meet the recommended guidelines.
