MAX4016ESA+ - Analog Devices

Description: Low-Cost, High-Speed, Single-Supply Op Amps with Rail-to-Rail Outputs

Download MAX4016ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

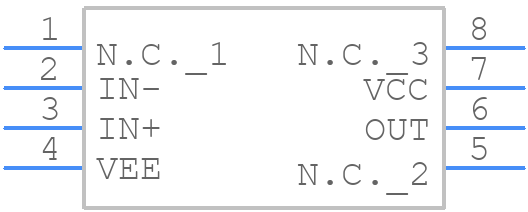

MAX4016ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4016ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX4016ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX4016ESA+ Details

  • Manufacturer Part Number:

    MAX4016ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1997-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    20 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    0.002 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    600 V/us

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage Limit-Max:

    12 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    398.107

  • Wideband:

    YES

  • Width:

    3.9 mm

MAX4016ESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4016ESA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the device away from high-current or high-voltage traces.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small series resistor (e.g., 10Ω) between the output and the load to dampen the oscillations.
  • The MAX4016ESA+ can drive a maximum capacitive load of 10nF. Exceeding this limit may cause the device to oscillate or become unstable. If a larger capacitive load is required, consider adding a buffer stage or using a device with a higher drive capability.
  • No, the MAX4016ESA+ is not designed to be used as a voltage regulator. It's a high-speed, low-noise op-amp intended for signal conditioning and amplification applications. If you need a voltage regulator, consider using a dedicated voltage regulator IC.
  • To calculate the power dissipation of the MAX4016ESA+, use the following formula: Pd = (Vcc x Icc) + (Vout x Iout). Where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to check the datasheet for the maximum allowed power dissipation and thermal resistance to ensure the device operates within its recommended operating conditions.
