MAX40204ANA+ - Analog Devices

Description: 36V, Pin-Programmable Gain, Bidirectional CSA

Download MAX40204ANA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

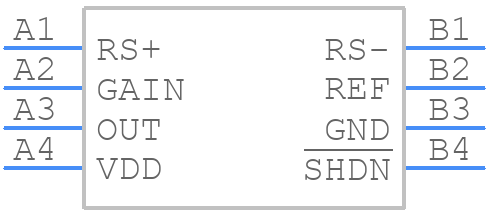

MAX40204ANA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX40204ANA+ - Analog Devices PCB footprint - BGA - BGA - N80E1+1
click to zoom
3D Models
MAX40204ANA+ - Analog Devices - 3D model - BGA - N80E1+1
click to zoom

MAX40204ANA+ Details

  • Manufacturer Part Number:

    MAX40204ANA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-WLCSP-N/A

  • Package Description:

    WLP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.02 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    35 µV

  • JESD-30 Code:

    R-XBGA-B8

  • Length:

    1.468 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,2X4,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    0.041 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    0.848 mm

MAX40204ANA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX40204ANA+ involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure accurate voltage measurement, make sure to use a high-impedance input source, keep the input traces short and shielded, and use a low-noise reference voltage. Also, calibrate the device according to the datasheet recommendations and consider using a voltage reference with low temperature coefficient.
  • The maximum allowed input voltage for the MAX40204ANA+ is 36V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and to prevent damage to the device.
  • The MAX40204ANA+ is rated for operation up to 125°C, but its accuracy and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or a thermally-enhanced package if operating in high-temperature environments.
  • Common issues with the MAX40204ANA+ include incorrect voltage measurement, noise, and oscillations. To troubleshoot, check the PCB layout, input and output connections, and power supply quality. Also, verify that the device is properly configured and calibrated, and consider using a scope or a logic analyzer to debug the issue.
