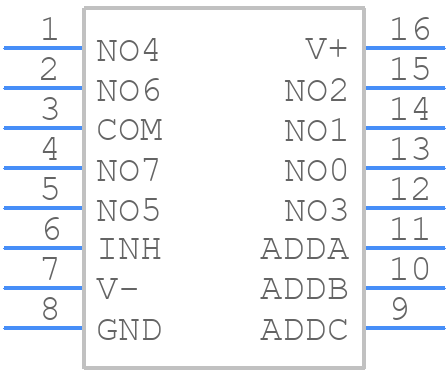

MAX4051ACEE+T - Analog Devices

MAX4051ACEE+T Details

• Manufacturer Part Number:

  MAX4051ACEE+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-QSOP-150_MIL

• Package Description:

  0.150 INCH, 0.025 INCH PITCH, ROHS COMPLIANT, MO-137AB, QSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-QSOP-150_MIL

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1996-01-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  IT CAN ALSO WORK ON 2V TO 16V SINGLE SUPPLY

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -8 V

• Neg Supply Voltage-Min (Vsup):

  -2.7 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Normal Position:

  NC

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  90 dB

• On-state Resistance Match-Nom:

  6 Ω

• On-state Resistance-Max (Ron):

  100 Ω

• Operating Temperature-Max:

  70 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.01 mA

• Supply Voltage-Max (Vsup):

  8 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  150 ns

• Switch-on Time-Max:

  175 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
