MAX4063ETE+ - Analog Devices

Description: Differential Microphone Preamplifier with Internal Bias and Complete Shutdown

Download MAX4063ETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

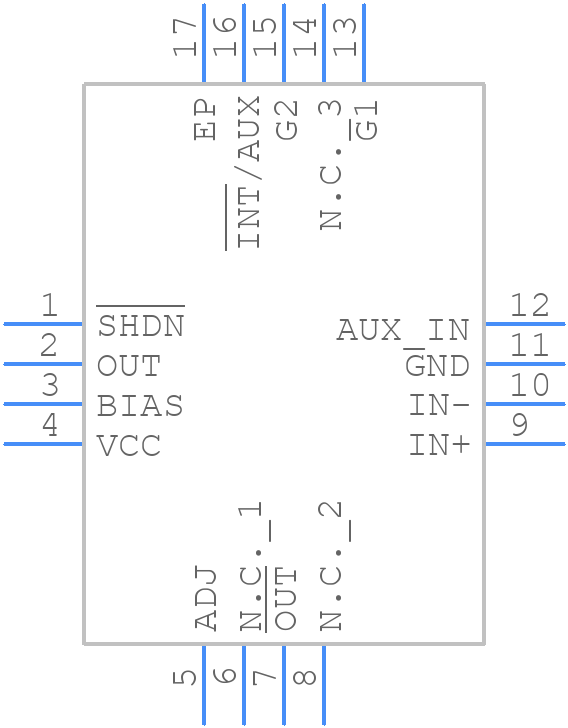

MAX4063ETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4063ETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-LFCSP-4X4X0.75_2023
click to zoom
3D Models
MAX4063ETE+ - Analog Devices - 3D model - Quad Flat No-Lead - 16-LFCSP-4X4X0.75_2023
click to zoom

MAX4063ETE+ Details

  • Manufacturer Part Number:

    MAX4063ETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM PITCH, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2003-02-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX4063ETE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4063ETE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be decoupled from the power supply using a 10uF capacitor. If oscillations still occur, consider adding a 10Ω resistor in series with the output.
  • The maximum power dissipation of the MAX4063ETE+ is dependent on the operating temperature and the thermal resistance of the package. For the TQFN package, the maximum power dissipation is approximately 1.4W at 25°C. However, it's recommended to derate the power dissipation by 10mW/°C above 25°C.
  • The MAX4063ETE+ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and power dissipation at high temperatures. Additionally, ensure that the device is properly heatsinked and the PCB is designed to handle high temperatures.
  • To troubleshoot issues with the MAX4063ETE+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4063ETE+ Overview

Use the download button to access the MAX4063ETE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Audio/Video Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
