MAX4081TASA+ - Analog Devices

Description: 76V, High-Side, Current-Sense Amplifiers with Voltage Output

Download MAX4081TASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

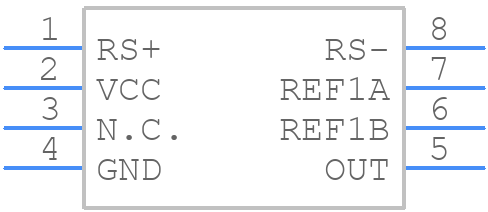

MAX4081TASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4081TASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0041
click to zoom
3D Models
MAX4081TASA+ - Analog Devices - 3D model - Small Outline Packages - 21-0041
click to zoom

MAX4081TASA+ Details

  • Manufacturer Part Number:

    MAX4081TASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2002-11-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    CURRENT SENSE AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    12 µA

  • Common-mode Reject Ratio-Min:

    100 dB

  • Common-mode Reject Ratio-Nom:

    124 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1200 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.19 mA

  • Supply Voltage Limit-Max:

    80 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    150

  • Wideband:

    NO

  • Width:

    3.9 mm

MAX4081TASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4081TASA+ involves keeping the input traces as short as possible, using a ground plane, and placing the device close to the current-sense resistor. Additionally, it's recommended to use a Kelvin connection to the sense resistor to minimize parasitic inductance and resistance.
  • Calibration involves applying a known current to the sense resistor and adjusting the gain and offset of the device to match the expected output voltage. The datasheet provides a calibration procedure, and it's recommended to perform calibration at multiple temperatures to ensure accuracy over the operating range.
  • The MAX4081TASA+ can measure currents up to ±3A, and it has an overcurrent detection feature that can be used to trigger an interrupt or shutdown the system in case of an overcurrent event. The device also has a built-in overvoltage protection circuit to prevent damage from excessive voltage.
  • The MAX4081TASA+ has a high common-mode rejection ratio (CMRR) of 86dB, which allows it to accurately measure currents in the presence of common-mode voltage. The device can handle common-mode voltages up to ±12V, making it suitable for use in high-voltage systems.
  • The MAX4081TASA+ has a typical power consumption of 1.2mA, which is relatively low compared to other current-sense amplifiers. However, the power consumption can increase depending on the output voltage and load current. It's essential to consider the power consumption of the MAX4081TASA+ when designing the system power budget.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4081TASA+ Overview

Use the download button to access the MAX4081TASA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX40, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
