MAX4104ESA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4104ESA+ - Operational Amplifier, Ultra High Speed, 1 Amplifier, 625 MHz, 400 V/µs, ± 3.5V to ± 5.5V, NSOIC

Download MAX4104ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

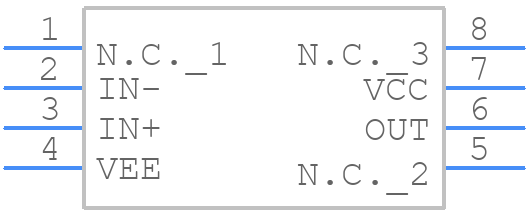

Symbol
MAX4104ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4104ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX4104ESA+ - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

MAX4104ESA+ Details

  • Manufacturer Part Number:

    MAX4104ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    70 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES (AVCL>=5)

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    400 V/us

  • Supply Current-Max:

    27 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    625000

  • Voltage Gain-Min:

    560

  • Wideband:

    YES

  • Width:

    3.9 mm

MAX4104ESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4104ESA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the feedback resistors close to the device.
  • The output filter components (Rf, Cf) should be chosen based on the desired cutoff frequency and the output impedance of the device. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the parasitic inductance and capacitance of the PCB traces when selecting the output filter components.
  • The MAX4104ESA+ has an absolute maximum input voltage rating of 6V, but the recommended maximum input voltage is 5.5V to ensure reliable operation. Exceeding the maximum input voltage can damage the device.
  • The MAX4104ESA+ is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • Oscillations or instability issues with the MAX4104ESA+ can be caused by a variety of factors, including poor PCB layout, incorrect output filter component values, or inadequate decoupling. To troubleshoot, check the PCB layout, ensure that the output filter components are correct, and add additional decoupling capacitors if necessary. Also, check the input and output voltage waveforms using an oscilloscope to identify any signs of oscillation or instability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4104ESA+ Overview

Use the download button to access the MAX4104ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX41, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
