MAX41400ANL+T - Analog Devices

Description: Low-Power, Precision Instrumentation Amplifier with Programmable Gain

Download MAX41400ANL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

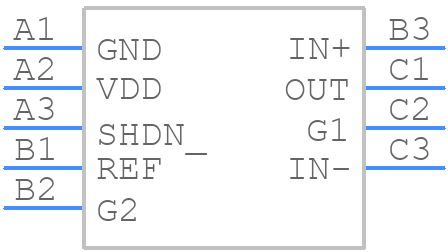

MAX41400ANL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX41400ANL+T - Analog Devices PCB footprint - BGA - BGA - N91F1+1
click to zoom
3D Models
MAX41400ANL+T - Analog Devices - 3D model - BGA - N91F1+1
click to zoom

MAX41400ANL+T Details

  • Manufacturer Part Number:

    MAX41400ANL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2021-01-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0003 µA

  • Bandwidth (3dB)-Nom:

    0.028 MHz

  • Common-mode Reject Ratio-Min:

    106 dB

  • Input Offset Voltage-Max:

    35 µV

  • JESD-30 Code:

    R-PBGA-B9

  • Length:

    1.258 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Slew Rate-Nom:

    0.08 V/us

  • Supply Current-Max:

    0.09 mA

  • Supply Voltage Limit-Max:

    4 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    200

  • Voltage Gain-Min:

    10

  • Voltage Gain-Nom:

    40

  • Width:

    1.228 mm

MAX41400ANL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX41400ANL+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and parasitic capacitance. Additionally, it's recommended to use a low-ESR capacitor for the input bypass capacitor (CIN) and to place it as close as possible to the device.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the input and output capacitors are properly selected and placed, and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small series resistor (e.g., 10Ω) between the output and the feedback pin to improve stability.
  • The MAX41400ANL+T has an absolute maximum input voltage rating of 6V. However, the recommended maximum input voltage is 5.5V to ensure reliable operation and to prevent damage to the device. Exceeding the maximum input voltage can cause permanent damage or affect the device's performance.
  • The MAX41400ANL+T is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques (e.g., heat sinks, thermal interfaces) to keep the junction temperature below 125°C.
  • To troubleshoot issues with the MAX41400ANL+T, start by verifying the input voltage, output voltage, and feedback pin voltages using an oscilloscope or multimeter. Check for proper component values, PCB layout, and soldering quality. Also, ensure that the device is operated within its recommended operating conditions and that the input and output capacitors are properly selected and placed. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX41400ANL+T Overview

Use the download button to access the MAX41400ANL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX41, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
