MAX41460GUB+T - Analog Devices

Description: RF Transmitter Sub-GHz ISM ASK/FSK Transmitter

Download MAX41460GUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

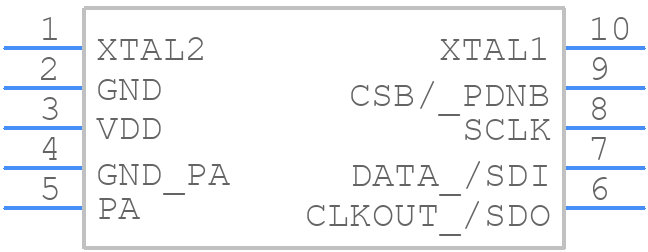

MAX41460GUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX41460GUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_2023
click to zoom
3D Models
MAX41460GUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2_2023
click to zoom

MAX41460GUB+T Details

  • Manufacturer Part Number:

    MAX41460GUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-11-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
