MAX41461GUB+T - Analog Devices

Description: RF Transmitter Current-Sense Amplifier W / PWM Rejection

Download MAX41461GUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

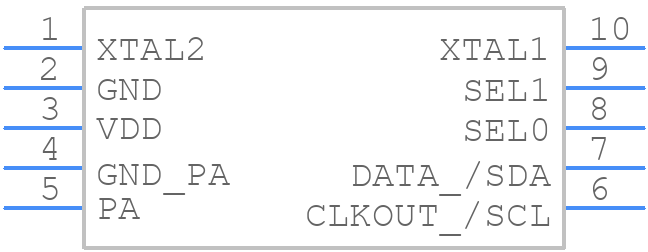

MAX41461GUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX41461GUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX41461GUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX41461GUB+T Details

  • Manufacturer Part Number:

    MAX41461GUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-01-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX41461GUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX41461GUB+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VLOGIC. Also, ensure that the input voltage is within the recommended range, and that the device is properly decoupled with capacitors.
  • The MAX41461GUB+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX41461GUB+T, start by checking the input voltage and current, and ensure that they are within the recommended range. Also, check the output voltage and current, and verify that they are within the expected range. Use an oscilloscope to check for any noise or oscillations on the output. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the MAX41461GUB+T is suitable for use in high-reliability and safety-critical applications. It has been designed and tested to meet the requirements of various industry standards, such as AEC-Q100 for automotive applications. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX41461GUB+T Overview

Use the download button to access the MAX41461GUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX41, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
