MAX4208AUA+ - Analog Devices

Description: Instrument Amp Single R-R O/P 2.75/5.5V

Download MAX4208AUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

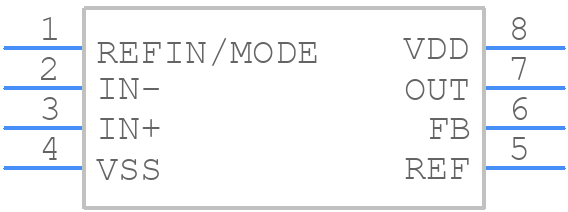

MAX4208AUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4208AUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 µMAX_
click to zoom
3D Models
MAX4208AUA+ - Analog Devices - 3D model - Small Outline Packages - 8 µMAX_
click to zoom

MAX4208AUA+ Details

  • Manufacturer Part Number:

    MAX4208AUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2007-10-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Common-mode Reject Ratio-Min:

    90 dB

  • Input Offset Voltage-Max:

    60 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.0025%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.08 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4208AUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4208AUA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • The MAX4208AUA+ is specified to operate from -40°C to +125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. Additionally, consider using thermal simulation tools to estimate the device's junction temperature and ensure it remains within the specified range.
  • The recommended input common-mode voltage range for the MAX4208AUA+ is from VEE (negative supply voltage) to VCC (positive supply voltage) - 1.5V. Operating outside this range may affect the device's performance and accuracy.
  • The MAX4208AUA+ has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, handle the device by the body, and avoid touching the pins. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
  • The maximum allowable input voltage for the MAX4208AUA+ is ±VCC (positive supply voltage) or ±VEE (negative supply voltage), whichever is less. Exceeding this voltage may damage the device or affect its performance.
