MAX4211EEUE+ - Analog Devices

Description: Maxim MAX4211EEUE+, Current Sensor, 16-Pin, TSSOP

Download MAX4211EEUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

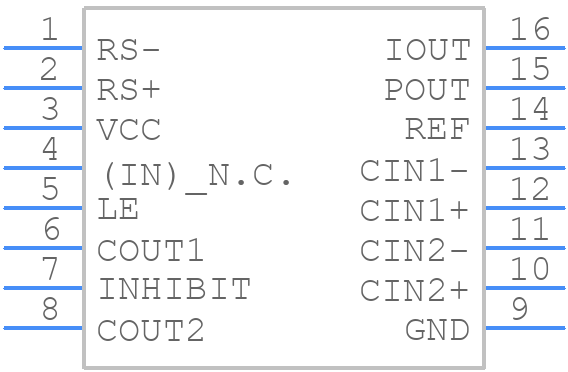

MAX4211EEUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4211EEUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0066_M (TSSOP)
click to zoom
3D Models
MAX4211EEUE+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0066_M (TSSOP)
click to zoom

MAX4211EEUE+ Details

  • Manufacturer Part Number:

    MAX4211EEUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-06-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX4211EEUE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4211EEUE+ involves keeping the input traces as short as possible, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To ensure accurate measurements with the MAX4211EEUE+, it's essential to follow proper calibration procedures, use high-quality input signals, and minimize noise and interference. Additionally, the device should be operated within its specified temperature range, and the input common-mode voltage should be within the recommended range.
  • The maximum allowable input voltage for the MAX4211EEUE+ is ±25V, but it's recommended to keep the input voltage within ±20V to ensure reliable operation and prevent damage to the device.
  • The MAX4211EEUE+ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's specifications according to the temperature derating curve provided in the datasheet.
  • Common issues with the MAX4211EEUE+ include incorrect output voltage, noise, and oscillations. To troubleshoot these issues, check the input signal quality, ensure proper PCB layout and grounding, and verify that the device is operated within its specified parameters. Consult the datasheet and application notes for more detailed troubleshooting guidance.
