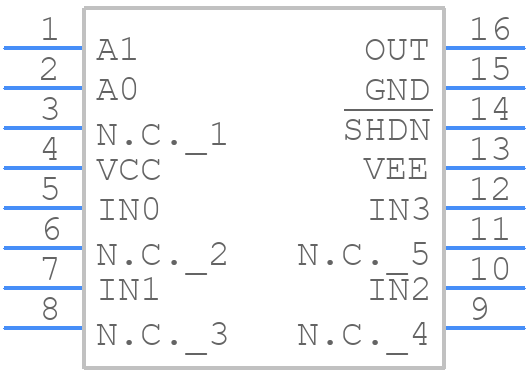

MAX4314EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4314EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX4314EEE+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX4314EEE+ Details

  • Manufacturer Part Number:

    MAX4314EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    82 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Signal Current-Max:

    0.12 A

  • Supply Current-Max (Isup):

    8.8 mA

  • Supply Voltage-Max (Vsup):

    10.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4314EEE+ Frequently Asked Questions (FAQs)

  • To minimize noise and ensure optimal performance, it's recommended to place the MAX4314EEE+ close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it's driving. Use a symmetrical layout, keep the input and output traces short, and avoid crossing digital and analog signals.
  • The MAX4314EEE+ has a limited output current of 10mA. To avoid current limiting, ensure that the load impedance is high enough to keep the output current below 10mA. If a higher current is required, consider using an external buffer or amplifier.
  • The MAX4314EEE+ is specified to operate from -40°C to +125°C. Temperature changes can affect the amplifier's gain, bandwidth, and offset voltage. Ensure that the device is operated within the specified temperature range, and consider temperature compensation or calibration if necessary.
  • To minimize noise and EMI, use a low-noise power supply, decouple the power pins with capacitors, and use a ground plane to reduce radiation. Additionally, consider shielding the circuit, using twisted pairs for signal lines, and keeping the layout compact.
  • Yes, the MAX4314EEE+ can be used as a unity-gain buffer by connecting the output to the inverting input (FB) and the non-inverting input (VIN+) to the signal source. However, ensure that the input signal is within the specified common-mode range and that the output is not loaded excessively.
