MAX4315EEE+ - Analog Devices

Description: Video Amplifiers High-Speed, Low-Power, Single-Supply Multichannel, Video Multiplexer-Amplifiers

Download MAX4315EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

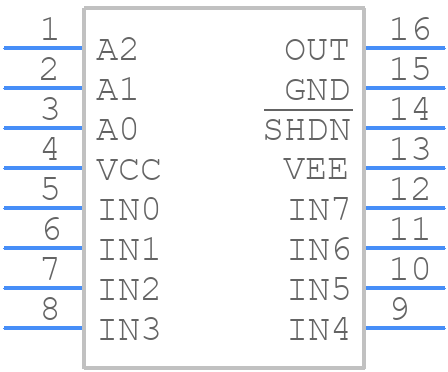

MAX4315EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4315EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX4315EEE+ - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX4315EEE+ Details

  • Manufacturer Part Number:

    MAX4315EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-07-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    82 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Signal Current-Max:

    0.12 A

  • Supply Current-Max (Isup):

    9.4 mA

  • Supply Voltage-Max (Vsup):

    10.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4315EEE+ Frequently Asked Questions (FAQs)

  • The MAX4315EEE+ is a high-frequency device, so it's essential to follow good high-frequency PCB design practices. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. Place the device close to the power supply and use decoupling capacitors to filter out noise.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the input and output capacitors are properly selected and placed. Additionally, avoid using long input traces and keep the device away from noise sources.
  • The maximum power dissipation of the MAX4315EEE+ is dependent on the operating conditions, such as input voltage, output current, and ambient temperature. As a general guideline, the maximum power dissipation is around 1.5W. However, it's essential to calculate the power dissipation based on the specific application and ensure that the device is properly heat-sinked.
  • The MAX4315EEE+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and ensure that the device is properly heat-sinked to maintain a safe junction temperature.
  • To troubleshoot issues with the MAX4315EEE+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the input and output. Also, ensure that the device is properly soldered and that there are no manufacturing defects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4315EEE+ Overview

Use the download button to access the MAX4315EEE+ schematic symbol, PCB footprint, and 3D model.
