MAX4360EAX+ - Analog Devices

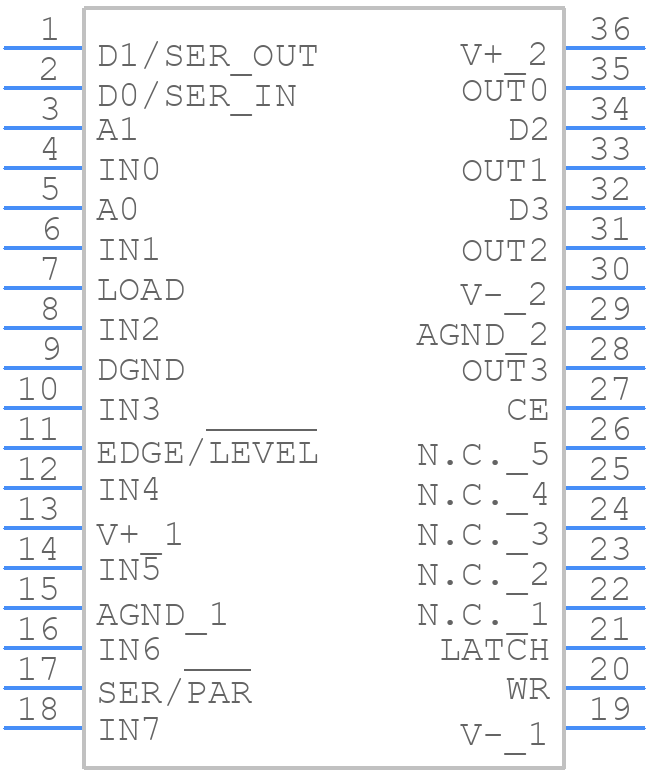

MAX4360EAX+ Details

• Manufacturer Part Number:

  MAX4360EAX+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  36-SSOP_W-7.62_MM

• Package Description:

  0.80 MM PITCH, SSOP-36

• Pin Count:

  36

• Manufacturer Package Code:

  36-SSOP_W-7.62_MM

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1999-10-23

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  VIDEO APPLICATION

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  15.415 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -5.5 V

• Neg Supply Voltage-Min (Vsup):

  -4.5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Channels:

  8

• Number of Functions:

  1

• Number of Terminals:

  36

• Off-state Isolation-Nom:

  80 dB

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP36,.4,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.64 mm

• Supply Current-Max (Isup):

  37 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  35 ns

• Switch-on Time-Max:

  50 ns

• Switching:

  BREAK-BEFORE-MAKE

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.495 mm
