MAX4364ESA+T - Analog Devices

Description: ● 1.4W into 8Ω Load (MAX4364) ● 1W into 8Ω Load (MAX4365) ● 0.04% THD+N at 1kHz ● 68dB PSRR at 217Hz ● 2.7V to 5.5V Single-Supply Operation ● 5mA Supply Current ● Low-Power, 10nA Shutdown Mode Clickless Power-Up and Shutdown ● Thermal-Overload and Short-Circuit Protection 8 SO

Download MAX4364ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

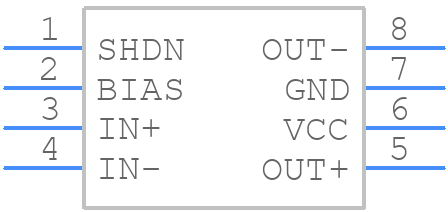

MAX4364ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4364ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+19F
click to zoom
3D Models
MAX4364ESA+T - Analog Devices - 3D model - Small Outline Packages - S8+19F
click to zoom

MAX4364ESA+T Details

  • Manufacturer Part Number:

    MAX4364ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2002-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.4 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4364ESA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4364ESA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the analog and digital grounds separate.
  • The values of R1 and R2 depend on the desired gain and the input signal range. A good starting point is to use the gain equation provided in the datasheet and calculate the resistor values based on the desired gain. It's also recommended to use 1% or 0.1% tolerance resistors to ensure accuracy.
  • The maximum input signal amplitude that the MAX4364ESA+T can handle without distortion is typically around 2.5Vrms, but this can vary depending on the gain setting and the output load. It's recommended to check the datasheet and application notes for more information on input signal handling.
  • Yes, the MAX4364ESA+T can be used in a single-supply configuration, but it requires an external voltage divider to generate a virtual ground. The device can operate from a single supply voltage between 2.7V and 5.5V, but the input signal range will be limited to 0V to VCC.
  • To ensure EMC compliance, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signal. Additionally, it's recommended to follow good PCB layout practices, such as using a solid ground plane and keeping the analog and digital grounds separate.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4364ESA+T Overview

Use the download button to access the MAX4364ESA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX43, or try a keyword search, such as Audio/Video Amplifiers
