MAX4377FASA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4377FASA+ - Current Sense Amplifier, High Side, Precision, 2 Amplifier, 120 µA, NSOIC, 8 Pins, -40 °C, 125 °C

Download MAX4377FASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

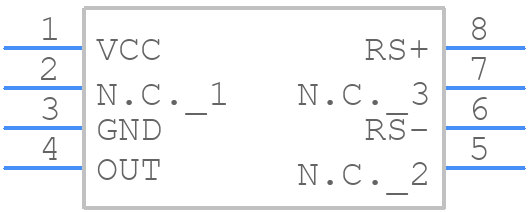

MAX4377FASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4377FASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX4377FASA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX4377FASA+ Details

  • Manufacturer Part Number:

    MAX4377FASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2000-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    120 µA

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    4.4 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1700

  • Voltage Gain-Min:

    50

  • Wideband:

    NO

  • Width:

    3.9 mm

MAX4377FASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4377FASA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors should be chosen based on the input voltage range, output voltage, and desired ripple voltage. A general rule of thumb is to use capacitors with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
  • The MAX4377FASA+ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation according to the ambient temperature to ensure reliable operation.
  • Yes, the MAX4377FASA+ is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates. However, it's recommended to consult with Analog Devices' application engineers to ensure that the device meets the specific requirements of the application.
  • Troubleshooting issues with the MAX4377FASA+ involves checking the input voltage, output voltage, and current, as well as the device's thermal performance. It's also recommended to check the PCB layout, input capacitors, and output load to ensure that they meet the device's requirements. Analog Devices provides a range of tools and resources, including application notes and evaluation boards, to help troubleshoot issues with the MAX4377FASA+.
