MAX4402AKA+T - Analog Devices

Description: Operational Amplifiers - Op Amps Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdown

Download MAX4402AKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

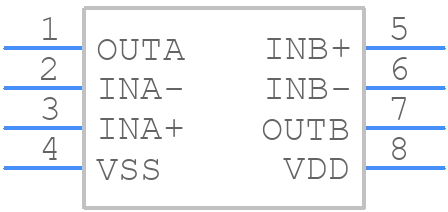

MAX4402AKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4402AKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX4402AKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX4402AKA+T Details

  • Manufacturer Part Number:

    MAX4402AKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    SC-74, MO-178, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2000-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    68 dB

  • Common-mode Reject Ratio-Nom:

    84 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    800

  • Voltage Gain-Min:

    17780

  • Wideband:

    NO

  • Width:

    1.625 mm

MAX4402AKA+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX44002AKA+T involves placing the sensor on the top layer of the PCB, with the photodiodes facing upwards. The sensor should be placed away from any obstacles or components that may block or reflect light. A ground plane underneath the sensor can help to reduce noise and improve performance.
  • Calibration of the MAX44002AKA+T involves adjusting the internal gain and offset registers to match the specific application's requirements. This can be done by taking readings at different light levels and adjusting the registers accordingly. The datasheet provides a calibration procedure that involves taking readings at 0 lux and 100,000 lux, and then calculating the gain and offset values.
  • The MAX44002AKA+T's accuracy can be affected by temperature variations. The sensor's sensitivity and dark current can change with temperature, which can result in errors in the lux readings. However, the datasheet provides temperature coefficients that can be used to compensate for these effects. Additionally, the sensor's internal temperature sensor can be used to monitor the temperature and adjust the readings accordingly.
  • Yes, the MAX44002AKA+T can be used in outdoor applications, but it may require additional protection from environmental factors such as UV radiation, moisture, and extreme temperatures. The sensor's package is not hermetically sealed, so it may not be suitable for harsh outdoor environments without additional protection. A conformal coating or potting compound can be used to protect the sensor from moisture and other environmental factors.
  • The MAX44002AKA+T can be interfaced with a microcontroller using the I2C or SMBus interface. The sensor's address and register map are provided in the datasheet, and the microcontroller can use these to read and write data to the sensor. The sensor's output data is in 16-bit format, and the microcontroller can use this data to calculate the lux reading.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4402AKA+T Overview

Use the download button to access the MAX4402AKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
