MAX44267AUD+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX44267AUD+ - OP-AMP, DUAL, 5MHZ, 3V/US, TSSOP-14

Download MAX44267AUD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

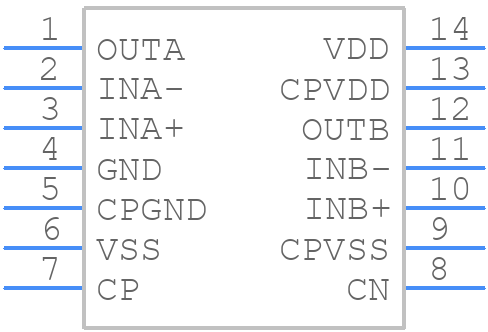

MAX44267AUD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX44267AUD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0066
click to zoom
3D Models
MAX44267AUD+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0066
click to zoom

MAX44267AUD+ Details

  • Manufacturer Part Number:

    MAX44267AUD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2014-12-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0025 µA

  • Common-mode Reject Ratio-Nom:

    122 dB

  • Input Offset Voltage-Max:

    50 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Width:

    4.4 mm

MAX44267AUD+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX44267AUD+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the load to minimize inductance and resistance in the output traces.
  • To ensure the MAX44267AUD+ is stable and does not oscillate, it is essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor (at least 10uF), and ensure the input capacitor is properly sized (at least 1uF). Additionally, the device should be operated within its recommended operating conditions, and the output should not be overloaded.
  • The maximum output current that the MAX44267AUD+ can deliver is 2A. However, the device can deliver higher currents for short durations. It is essential to ensure the device is properly heatsinked and the output current is within the recommended operating conditions to prevent overheating and damage.
  • The MAX44267AUD+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is essential to ensure the device is properly heatsinked, and the operating conditions are within the recommended specifications to prevent overheating and damage.
  • To troubleshoot issues with the MAX44267AUD+, start by verifying the input voltage, output voltage, and output current. Check for proper connections, layout, and placement. Ensure the device is operated within its recommended operating conditions, and the output is not overloaded. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX44267AUD+ Overview

Use the download button to access the MAX44267AUD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
