MAX44269EWL+T - Analog Devices

Description: Analog Comparators Dual Comparators in 0.4mm-pitch WLP

Download MAX44269EWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

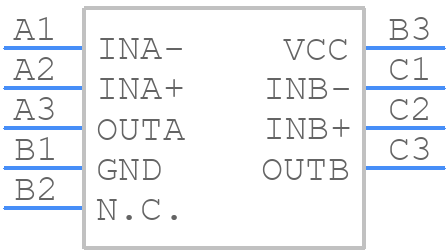

MAX44269EWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX44269EWL+T - Analog Devices PCB footprint - BGA - BGA - W91B1-6
click to zoom
3D Models
MAX44269EWL+T - Analog Devices - 3D model - BGA - W91B1-6
click to zoom

MAX44269EWL+T Details

  • Manufacturer Part Number:

    MAX44269EWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    1.30 X 1.30 MM, 0.40 MM PITCH, ROHS COMPLIANT, WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2011-10-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.26 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    39000 ns

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.26 mm

MAX44269EWL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX44269EWL+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply the power supply voltage (VCC) before applying the input signal. Also, ensure that the input signal is within the recommended range and that the device is properly bypassed with capacitors.
  • The MAX44269EWL+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX44269EWL+T, start by checking the input signal and power supply voltage to ensure they are within the recommended range. Next, verify that the device is properly bypassed and that the PCB layout is correct. If the issue persists, use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance.
  • Yes, the MAX44269EWL+T is suitable for use in high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.
