MAX4429ESA+ - Analog Devices

Description: High-Speed, 6A MOSFET Driver (Noninverting)

Download MAX4429ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

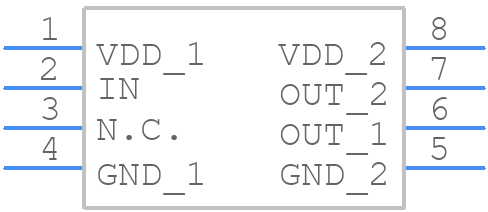

MAX4429ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4429ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX4429ESA+ - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

MAX4429ESA+ Details

  • Manufacturer Part Number:

    MAX4429ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SLIM, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1992-11-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    3.9 mm

MAX4429ESA+ Frequently Asked Questions (FAQs)

  • The MAX4429ESA+ is a high-frequency device, so it's essential to follow good layout and placement practices to minimize noise and ensure optimal performance. Keep the device close to the power supply, use short traces, and avoid vias under the device. Also, place the input and output capacitors close to the device pins, and use a solid ground plane to reduce noise.
  • The input and output capacitors should be chosen based on the operating frequency, output current, and desired ripple voltage. A general rule of thumb is to use low-ESR capacitors with a value of 1-10uF for the input capacitor and 10-100uF for the output capacitor. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The MAX4429ESA+ can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and ensure that it's properly heat-sinked to prevent overheating.
  • To ensure stability, follow the recommended layout and placement guidelines, and use the correct input and output capacitors. Also, make sure the input voltage is within the recommended range, and the output voltage is set correctly. If oscillation occurs, try adding a small capacitor (e.g., 10nF) between the output and ground pins.
  • The MAX4429ESA+ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to check the device's thermal performance and ensure that it's properly heat-sinked to prevent overheating. Also, consider using a thermal pad or heat sink to dissipate heat.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4429ESA+ Overview

Use the download button to access the MAX4429ESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
