MAX4462HESA+ - Analog Devices

Description: Maxim MAX4462HESA+ Instrumentation Amplifier, ±250μV Offset 2.5MHz GBW, CMMR 80dB, 2.85 → 5.25 V, 8-Pin SOIC

Download MAX4462HESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

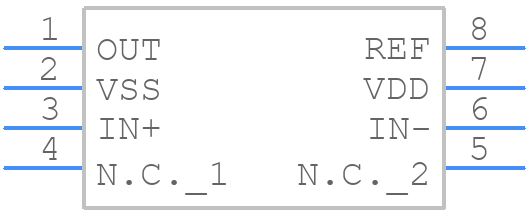

MAX4462HESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4462HESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
MAX4462HESA+ - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

MAX4462HESA+ Details

  • Manufacturer Part Number:

    MAX4462HESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2002-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bandwidth (3dB)-Nom:

    0.025 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Voltage-Max:

    750 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.25%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.25 V/us

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Nom:

    100

  • Width:

    3.9 mm

MAX4462HESA+ Frequently Asked Questions (FAQs)

  • The MAX4462HESA+ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the signal source, use a ground plane, and keep the input traces short and shielded. Additionally, avoid placing the device near high-frequency sources or digital circuits that may cause electromagnetic interference.
  • The gain setting of the MAX4462HESA+ depends on the amplitude of the input signal and the desired output signal level. A higher gain setting can amplify small signals, but may also introduce noise and distortion. A lower gain setting can reduce noise and distortion, but may not provide enough amplification for small signals. It is recommended to experiment with different gain settings and measure the output signal to determine the optimal gain for your specific application.
  • The maximum input signal amplitude that the MAX4462HESA+ can handle is dependent on the gain setting and the supply voltage. According to the datasheet, the maximum input signal amplitude is ±2.5V for a gain setting of 1 and a supply voltage of 5V. However, it is recommended to derate the input signal amplitude to ensure reliable operation and to avoid clipping or distortion.
  • The MAX4462HESA+ has a built-in low-pass filter that can help filter out high-frequency noise and interference. Additionally, external filtering can be used to further reduce noise and interference. A simple RC filter or a more complex active filter can be used, depending on the specific requirements of the application.
  • The power consumption of the MAX4462HESA+ depends on the supply voltage and the operating mode. According to the datasheet, the typical quiescent current is 350μA for a supply voltage of 5V. However, the power consumption can increase depending on the gain setting and the input signal amplitude. It is recommended to consult the datasheet and to measure the power consumption in the specific application to determine the actual power consumption.
