MAX4477AUA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4477AUA+T - Operational Amplifier, RRO, 2 Amplifier, 10 MHz, 3 V/µs, ± 1.35V to ± 2.75V, 2.7V to 5.5V, µMAX

Download MAX4477AUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

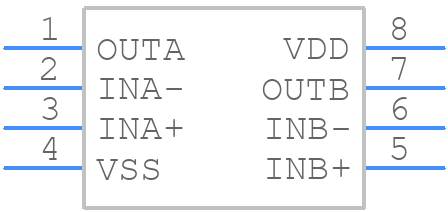

Symbol
MAX4477AUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4477AUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1
click to zoom
3D Models
MAX4477AUA+T - Analog Devices - 3D model - Small Outline Packages - U8+1
click to zoom

MAX4477AUA+T Details

  • Manufacturer Part Number:

    MAX4477AUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Bias Current-Max (IIB) @25C:

    0.00015 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    750 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    8.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    17780

  • Wideband:

    NO

  • Width:

    3 mm

MAX4477AUA+T Frequently Asked Questions (FAQs)

  • The MAX4477AUA+T is a high-gain amplifier, and as such, it is sensitive to noise and layout. It is recommended to keep the input traces as short as possible, use a ground plane, and keep the power supply decoupling capacitors close to the device. Additionally, it is recommended to use a low-noise power supply and to avoid running high-frequency signals near the device.
  • The MAX4477AUA+T is specified to operate from -40°C to +125°C. To ensure operation within this range, it is recommended to use a thermally conductive material, such as a heat sink, to dissipate heat generated by the device. Additionally, it is recommended to avoid exposing the device to extreme temperatures during storage or handling.
  • The recommended input impedance for the MAX4477AUA+T is 1kΩ to 10kΩ. A higher input impedance can lead to increased noise and reduced bandwidth, while a lower input impedance can lead to increased power consumption and reduced gain. It is recommended to match the input impedance to the source impedance to ensure optimal performance.
  • Common issues with the MAX4477AUA+T can often be attributed to poor layout, inadequate power supply decoupling, or incorrect input impedance. To troubleshoot, check the layout and ensure that it meets the recommended guidelines, verify that the power supply decoupling capacitors are properly placed and sized, and check the input impedance to ensure it is within the recommended range. Additionally, it is recommended to use a scope to measure the output signal and verify that it is within the expected range.
  • The recommended power supply voltage for the MAX4477AUA+T is 2.7V to 5.5V. Operating the device outside of this range can lead to reduced performance, increased power consumption, or even damage to the device. It is recommended to use a regulated power supply to ensure a stable voltage supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4477AUA+T Overview

Use the download button to access the MAX4477AUA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
