MAX4493AUK+T - Analog Devices

Description: SC70, Low-Power, General-Purpose, Dual-Supply, Rail-to-Rail Op Amps 40°C to +125°C 5 SOT23

Download MAX4493AUK+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

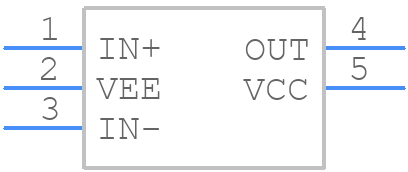

Symbol
MAX4493AUK+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4493AUK+T - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - U5+1
click to zoom
3D Models
MAX4493AUK+T - Analog Devices - 3D model - SOT23 (5-Pin) - U5+1
click to zoom

MAX4493AUK+T Details

  • Manufacturer Part Number:

    MAX4493AUK+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    5-SOT_23-N/A

  • Package Description:

    ROHS COMPLIANT, MO-178AA, SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    5-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1 µA

  • Bias Current-Max (IIB) @25C:

    1 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    1780

  • Wideband:

    NO

  • Width:

    1.625 mm

MAX4493AUK+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4493AUK+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and electromagnetic interference (EMI).
  • To ensure the MAX4493AUK+T is properly biased, make sure to connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and the GND pin to a solid ground plane. Also, ensure that the input common-mode voltage is within the recommended range of 1.2V to 3.5V, and that the output load is within the recommended range of 1kΩ to 10kΩ.
  • The maximum power dissipation of the MAX4493AUK+T is 250mW. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. Additionally, keep the device's operating temperature within the recommended range of -40°C to +125°C.
  • Yes, the MAX4493AUK+T can be used in high-temperature environments, but its performance may degrade above 85°C. The device is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Above 125°C, the device's accuracy and linearity may degrade, and its reliability may be affected.
  • To troubleshoot common issues with the MAX4493AUK+T, start by checking the input and output connections, ensuring they are properly connected and not shorted. Next, verify the power supply voltage and ensure it is within the recommended range. If the issue persists, check for oscillations or noise on the output, and ensure the device is properly bypassed and decoupled. If the issue still persists, consult the datasheet and application notes for further troubleshooting guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4493AUK+T Overview

Use the download button to access the MAX4493AUK+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX44, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
