MAX4507EAP+ - Analog Devices

Description: Overvoltage Protection ±40V with Power Off ±36V with Power On ♦ Open Signal Paths with Power Off ♦ Output Clamps to Either Rail with an Input Overvoltage ♦ Any On Channel Output is Not Affected by an Overvoltage to Any Other Channel ♦ 100Ω max On-Resistance ♦ 10ns Overvoltage Turn-On Delay ♦ No Latchup During Power Sequencing ♦ Rail-to-Rail Signal Handling ♦ 500Ω Output Clamp Resistance During Overvoltage

Download MAX4507EAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

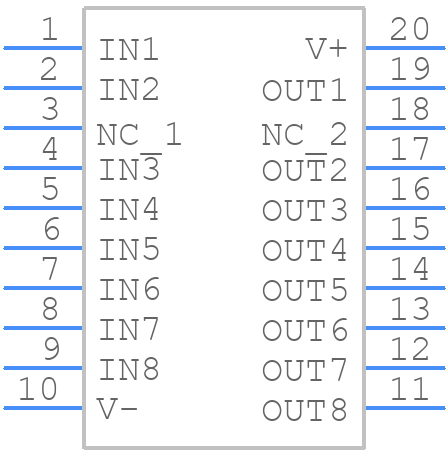

MAX4507EAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4507EAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 SSOP
click to zoom
3D Models
MAX4507EAP+ - Analog Devices - 3D model - Small Outline Packages - 20 SSOP
click to zoom

MAX4507EAP+ Details

  • Manufacturer Part Number:

    MAX4507EAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    20

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX4507EAP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4507EAP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and away from noise sources.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the input signals are within the specified voltage range and that the device is properly bypassed with a capacitor.
  • The MAX4507EAP+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX4507EAP+, start by checking the power supply and input signals to ensure they are within the specified range. Then, verify that the device is properly bypassed and that the PCB layout is correct. If the issue persists, use an oscilloscope to check the output signals and look for any signs of noise or oscillation.
  • The MAX4507EAP+ is a commercial-grade device and is not intended for use in high-reliability or safety-critical applications. For such applications, it's recommended to use a device that is specifically designed and qualified for high-reliability or safety-critical use, such as a device with a higher temperature rating or one that is certified to a specific safety standard.
