MAX4533EPP+ - Analog Devices

Description: Analog Switch ICs Quad, Rail-to-Rail, Fault-Protected, SPDT Analog Switch

Download MAX4533EPP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

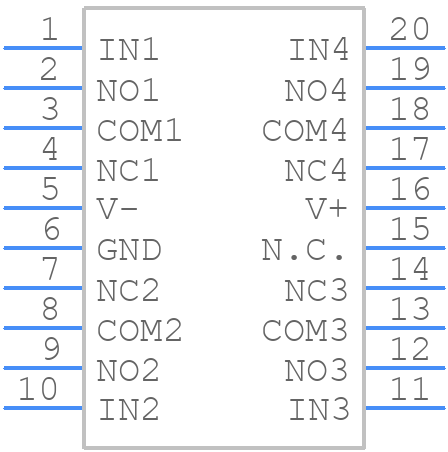

MAX4533EPP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

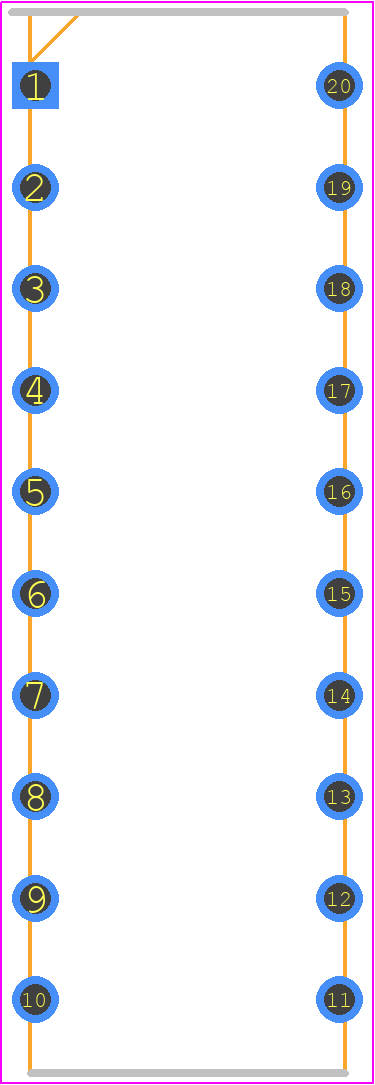

MAX4533EPP+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 Plastic DIP
click to zoom
3D Models
MAX4533EPP+ - Analog Devices - 3D model - Dual-In-Line Packages - 20 Plastic DIP
click to zoom

MAX4533EPP+ Details

  • Manufacturer Part Number:

    MAX4533EPP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE AT 12V NOMINAL

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    62 dB

  • On-state Resistance Match-Nom:

    6 Ω

  • On-state Resistance-Max (Ron):

    175 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX4533EPP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4533EPP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid routing digital signals near analog signals. Refer to the application note AN-1149 for more detailed guidelines.
  • The MAX4533EPP+ requires a single 2.7V to 5.5V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power the device after the analog signal sources are stable. Avoid powering the device with a supply that has a high ripple or noise.
  • The MAX4533EPP+ can drive capacitive loads up to 100pF. However, it's recommended to keep the capacitive load as low as possible to ensure stability and optimal performance. If a higher capacitive load is required, consider adding a buffer or an op-amp to isolate the load.
  • To troubleshoot issues with the MAX4533EPP+, start by verifying the power supply and ensuring it's within the recommended range. Check the input signals and ensure they are within the specified range. Use an oscilloscope to observe the output voltage and look for any signs of oscillation or noise. Check the PCB layout and ensure it's following the recommended guidelines. If the issue persists, consult the application note AN-1149 or contact Analog Devices' technical support.
  • The MAX4533EPP+ is specified to operate from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the output voltage accuracy may be affected. Ensure that the device is operated within the recommended temperature range and consider using thermal management techniques, such as heat sinks or thermal pads, to keep the device temperature within the specified range.
