MAX4581LEEE+ - Analog Devices

Description: Multiplexer Switch ICs Low-Voltage, CMOS Analog Multiplexers/Switches

Download MAX4581LEEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

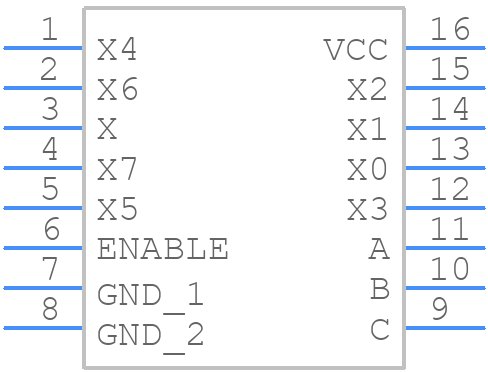

Symbol
MAX4581LEEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4581LEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+4
click to zoom
3D Models
MAX4581LEEE+ - Analog Devices - 3D model - Small Outline Packages - E16+4
click to zoom

MAX4581LEEE+ Details

  • Manufacturer Part Number:

    MAX4581LEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-08-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    90 dB

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    100 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX4581LEEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice for the MAX4581LEEE+ is to keep the input and output traces short and separate, use a solid ground plane, and place a 10nF to 100nF bypass capacitor between VCC and GND near the device. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
  • To ensure the MAX4581LEEE+ operates within its specified temperature range (-40°C to +85°C), make sure to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. You can also consider using thermal interface materials or heat sinks to improve heat dissipation.
  • The maximum allowable voltage on the input pins of the MAX4581LEEE+ is 6V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage does not exceed the maximum rating, and consider using input protection circuits if necessary.
  • The MAX4581LEEE+ is a commercial-grade device, and while it's suitable for many applications, it may not meet the requirements for high-reliability or safety-critical applications. For such applications, consider using industrial-grade or automotive-grade devices that meet specific reliability and safety standards.
  • To troubleshoot issues with the MAX4581LEEE+, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and input signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
