MAX4583ESE+T - Analog Devices

Description: Analog Switch ICs 3Ch SPDT Low V Analog Switch

Download MAX4583ESE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

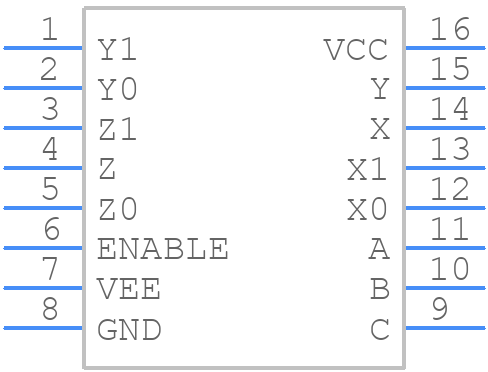

Symbol
MAX4583ESE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4583ESE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX4583ESE+T - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX4583ESE+T Details

  • Manufacturer Part Number:

    MAX4583ESE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    73 dB

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    80 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    100 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4583ESE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4583ESE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor (C2) to minimize ringing and ensure stability.
  • The values of R1, R2, C1, and C2 depend on the specific application requirements, such as the input voltage range, output voltage, and switching frequency. A good starting point is to use the values recommended in the datasheet, and then adjust them based on simulation results or empirical testing. It's also recommended to use a spice model or simulation tool to optimize the component values for the specific application.
  • The MAX4583ESE+T has an operating temperature range of -40°C to +125°C. As the ambient temperature increases, the device's performance may be affected, including a decrease in switching frequency, an increase in quiescent current, and a reduction in output voltage accuracy. It's essential to ensure that the device is operated within the recommended temperature range to maintain optimal performance.
  • To ensure proper power-up and power-down sequencing, it's recommended to follow the guidelines outlined in the datasheet. This includes applying the input voltage (VIN) before the enable signal (EN), and ensuring that the enable signal is low during power-down. Additionally, it's essential to ensure that the input voltage is stable and within the recommended range before applying the enable signal.
  • Common failure modes of the MAX4583ESE+T include overvoltage, undervoltage, and overheating. To mitigate these failure modes, it's essential to ensure that the input voltage is within the recommended range, to use a suitable input capacitor to filter out noise and transients, and to provide adequate heat sinking and thermal management. Additionally, it's recommended to use a fuse or overcurrent protection device to prevent damage from excessive current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4583ESE+T Overview

Use the download button to access the MAX4583ESE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX45, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
