MAX4619ESE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4619ESE+ - ANALOGUE SWITCH, TRIPLE, NSOIC-16

Download MAX4619ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

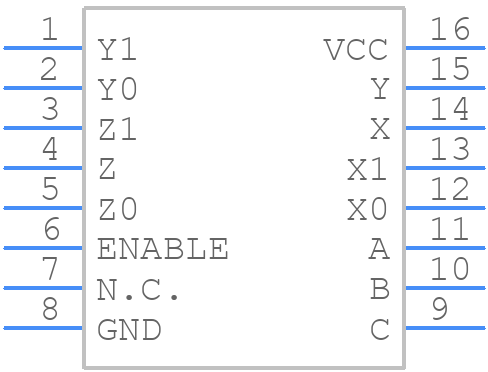

Symbol
MAX4619ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4619ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX4619ESE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX4619ESE+ Details

  • Manufacturer Part Number:

    MAX4619ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    93 dB

  • On-state Resistance Match-Nom:

    1.2 Ω

  • On-state Resistance-Max (Ron):

    20 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.075 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    15 ns

  • Switch-on Time-Max:

    20 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX4619ESE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4619ESE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces as short as possible.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC before applying any input signals. Also, ensure that the VCC supply is stable and within the recommended operating range before applying any input signals.
  • The maximum allowable input voltage for the MAX4619ESE+ is 5.5V. To protect the device from overvoltage, use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the input voltage to within the recommended range.
  • To optimize the MAX4619ESE+ for low-power operation, use a low-dropout voltage regulator for the VCC supply, minimize the input signal frequency, and use a low-power mode if available. Additionally, consider using a lower-power alternative device if possible.
  • The recommended operating temperature range for the MAX4619ESE+ is -40°C to +125°C. Temperature can affect the device's performance by increasing the offset voltage and decreasing the bandwidth at higher temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.
