MAX4634ETB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4634ETB+T - 4:1 Analog Multiplexer IC, Single, 7 ohm, 1.8V to 5.5V, TDFN-10

Download MAX4634ETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

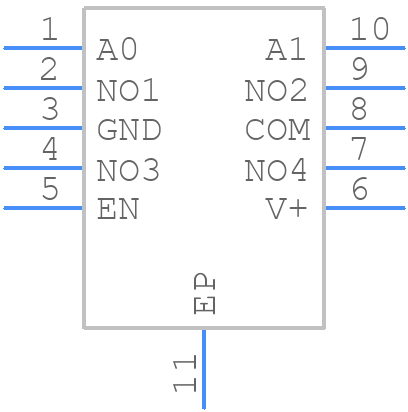

MAX4634ETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4634ETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1
click to zoom
3D Models
MAX4634ETB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1
click to zoom

MAX4634ETB+T Details

  • Manufacturer Part Number:

    MAX4634ETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC10,.12,20

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    80 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    14 ns

  • Switch-on Time-Max:

    22 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX4634ETB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4634ETB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces as short as possible.
  • The MAX4634ETB+T requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power source. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable to prevent any unwanted output voltage transients.
  • The MAX4634ETB+T can handle input voltages up to 6V without damage, but the device is only specified to operate with input voltages up to 5.5V. Exceeding the maximum input voltage can lead to device damage or malfunction.
  • The output voltage of the MAX4634ETB+T can be calculated using the following equation: VOUT = (VIN x GAIN) + VREF, where VIN is the input voltage, GAIN is the gain setting (1, 2, or 4), and VREF is the reference voltage (typically 1.2V).
  • The typical settling time of the MAX4634ETB+T is around 1.5us to 2us, depending on the gain setting and the input signal frequency. The settling time can affect the overall system performance, especially in applications where fast signal acquisition is required. It's recommended to ensure that the system design takes into account the settling time of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4634ETB+T Overview

Use the download button to access the MAX4634ETB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX46, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
