MAX4721EBL+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4721EBL+T - Analogue Switch, CMOS, 2 Channels, SPST, 4.5 ohm, 1.8V to 5.5V, UCSP, 9 Pins

Download MAX4721EBL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

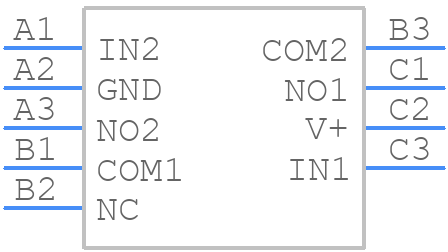

MAX4721EBL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4721EBL+T - Analog Devices PCB footprint - BGA - BGA - B9+2
click to zoom
3D Models
MAX4721EBL+T - Analog Devices - 3D model - BGA - B9+2
click to zoom

MAX4721EBL+T Details

  • Manufacturer Part Number:

    MAX4721EBL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    N/A

  • Package Description:

    VFBGA, BGA9,3X3,20

  • Pin Count:

    9

  • Manufacturer Package Code:

    N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-11-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO OPERATES WITH 5V NOMINAL SUPPLY

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.52 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    9

  • Off-state Isolation-Nom:

    55 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.65 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    50 ns

  • Switch-on Time-Max:

    100 ns

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.52 mm

MAX4721EBL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX4721EBL+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX4721EBL+T has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a thermal pad on the PCB can be used to connect the device to a heat sink or a metal plate. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help to keep the device within its operating temperature range.
  • The recommended input capacitance for the MAX4721EBL+T is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and the desired performance. It's recommended to experiment with different capacitance values to find the optimal values for the specific use case.
  • To ensure the reliability and longevity of the MAX4721EBL+T, it's recommended to follow proper handling and storage procedures, operate the device within its recommended operating conditions, and avoid exposing it to extreme temperatures, humidity, or mechanical stress. Additionally, using a reliable and high-quality PCB material, and following proper soldering and assembly procedures can also help to ensure the reliability and longevity of the device.
  • Common failure modes of the MAX4721EBL+T include overheating, electrical overstress, and physical damage. To mitigate these failure modes, it's recommended to ensure proper thermal management, operate the device within its recommended operating conditions, and handle the device with care during assembly and testing. Additionally, using protective devices such as TVS diodes and fuses can help to protect the device from electrical overstress and other failure modes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4721EBL+T Overview

Use the download button to access the MAX4721EBL+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX47, or try a keyword search, such as Multiplexers or Switches
