MAX4814EECB+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4814EECB+ - Video Switch, 5xSPST Configuration, 190MHz Bandwidth, 75dB Cross Talk, 4.5V to 5.5V Supply, TQFP-64

Download MAX4814EECB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX4814EECB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

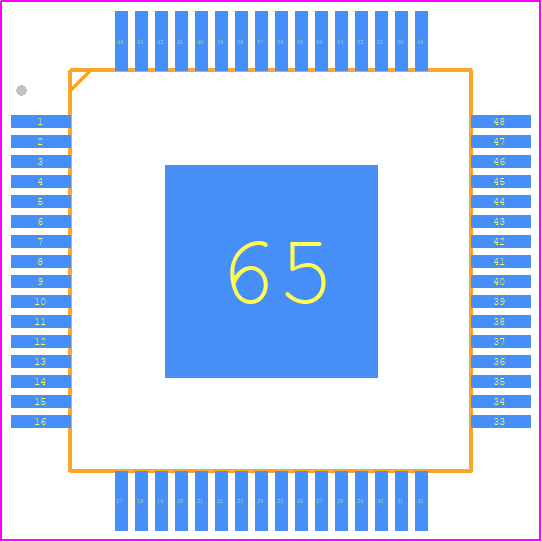

MAX4814EECB+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - C64E-10
click to zoom
3D Models
MAX4814EECB+ - Analog Devices - 3D model - Quad Flat Packages - C64E-10
click to zoom

MAX4814EECB+ Details

  • Manufacturer Part Number:

    MAX4814EECB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    64-TQFP_EP-10X10X1.0

  • Package Description:

    10 X 10 MM, 1 MM HEIGHT, LEAD FREE, MS-026ACD, TQFN-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    64-TQFP_EP-10X10X1.0

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX4814EECB+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX4814EECB+ is to keep the transmitter and receiver sections separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Additionally, use a common-mode choke or ferrite bead to filter out high-frequency noise on the RS-485 bus.
  • To ensure reliable communication in a noisy industrial environment, use a shielded twisted-pair cable, implement error-checking and correction mechanisms in your protocol, and consider using a repeater or isolator to boost the signal and provide electrical isolation.
  • The maximum cable length supported by the MAX4814EECB+ depends on the data rate, cable characteristics, and noise environment. As a general guideline, the MAX4814EECB+ can support cable lengths up to 4000 feet (1219 meters) at a data rate of 250 kbps, but this can be reduced to 1000 feet (305 meters) or less at higher data rates.
  • The MAX4814EECB+ can be configured for half-duplex or full-duplex operation by controlling the DE (driver enable) and RE (receiver enable) pins. For half-duplex operation, tie DE and RE together and connect to a single control signal. For full-duplex operation, connect DE to the transmitter enable signal and RE to the receiver enable signal.
  • The recommended power-up sequence for the MAX4814EECB+ is to apply power to VCC first, followed by the logic inputs (e.g., DE, RE, and DI). The recommended power-down sequence is to remove power from the logic inputs first, followed by VCC. This helps prevent latch-up and ensures a clean power-down.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX4814EECB+ Overview

Use the download button to access the MAX4814EECB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX48, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
