MAX4885ETJ+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX4885ETJ+ - IC, ANALOG MULTIPLEXER, 2 X 1, TQFN-32

Download MAX4885ETJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

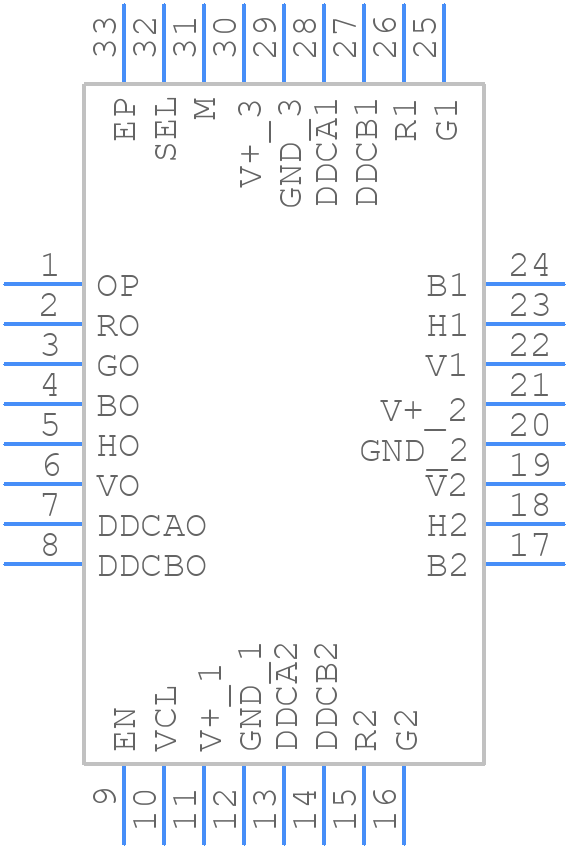

Symbol
MAX4885ETJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX4885ETJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 TQFN-EP(T3255-4)
click to zoom
3D Models
MAX4885ETJ+ - Analog Devices - 3D model - Quad Flat No-Lead - 32 TQFN-EP(T3255-4)
click to zoom

MAX4885ETJ+ Details

  • Manufacturer Part Number:

    MAX4885ETJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220WHHD-2, TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    VIDEO MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    7.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    100 ns

  • Switch-on Time-Max:

    7000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX4885ETJ+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX4885ETJ+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed close to the bypass capacitors to minimize parasitic inductance.
  • To ensure the MAX4885ETJ+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet. Apply power to the VCC pin first, followed by the VDD pin. The device will then initialize and enter a low-power state. Wait for the POR (Power-On Reset) signal to go high before starting to transmit data.
  • The maximum cable length supported by the MAX4885ETJ+ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100 Mbps. For longer cable lengths, repeaters or signal conditioning devices may be required.
  • To troubleshoot issues with the MAX4885ETJ+, start by checking the power supply and ensuring that the device is properly powered up. Verify that the clock signal is present and within the specified frequency range. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or distortion. Also, check the device's status registers to identify any error conditions.
  • Yes, the MAX4885ETJ+ can be used in a hot-swap application. The device has built-in protection against overvoltage and undervoltage conditions, and it can withstand the voltage transients that occur during hot-swapping. However, it's essential to follow proper hot-swap design guidelines and ensure that the device is properly powered down before removal.
